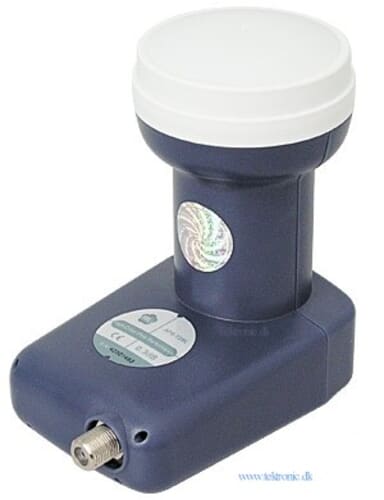

MTI single universal LNB, Blue line 0.3

MTI Blue line 0.3 dB Model No. AP-8T2BL 0.3 dB LNB fra MTIs Blue line serie. Lavt støjtal, høj frekvensstabilitet og lavt strømforbrug er nogle af fordelene ved denne LNB. Det oplyste støjtal på kun 0.3 dB er typisk støjtal. Leveres med 3 års garanti. Egnet til modtagelse af svage SAT signaler

Kan anvendes på alle digitale standardinstallationer.

Tekniske data (engelsk)
Input Frequency Range: Low Band: 10.7 ~ 11.70 GHz / High Band: 11.7 ~ 12.75 GHz IF Input Output Frequency Range: Low Band: 950 ~ 1950 MHz / High Band: 1100 ~ 2150MHz Output Connector Type: 75 Female Connector Output VSWR: 2.0:1 (Typ.) @ Room Temperature Local Oscillator LO. Frequency: Low Band: 9.75 GHz / High Band: 10.6GHz LO. Frequency Stability: ± 1MHz (Max.) @ Room Temperature LO. Frequency Phase Noise: -55dBc/Hz@ 1KHz (Max.) -80dBc/Hz@10KHz (Max.) -100dBc/Hz@100KHz (Max.) -105dBc/Hz@1MHz (Max.) -110dBc/Hz@10MHz (Max.) Conversion Performance @Room Temperature Conversion GAIN: 62dB (Max.) Gain Variation (P-P): 4dB (Typ.) Gain Flatness (across any 26 MHz segment): ± 0.5dB (Typ.) Noise Figure Low Band: 0.3dB (Typ.) / High Band: 0.3dB (Typ.) Image Rejection: 45dB (Min.) Cross Polarization: 25dB (Typ.) Power Requirements DC Current Consumption: 70mA (Typ.) Operating Voltage : Vertical: 11.5 ~ 14 Vdc / Horizontal: 16 ~ 19 Vdc Band Switching: Low Band: 0 Hz / High Band: 22 KHz ± 4KHz
