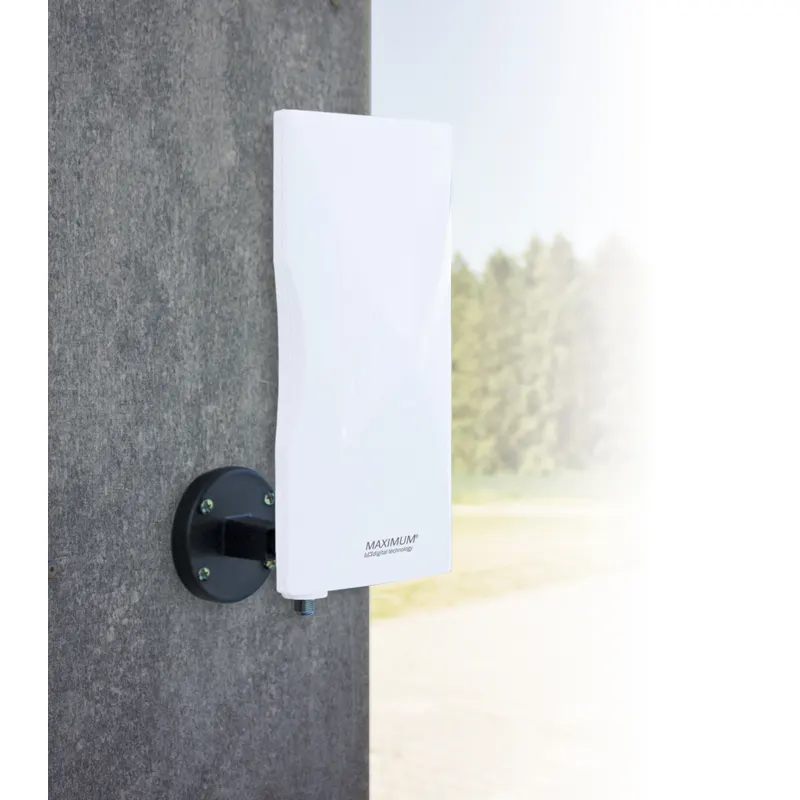

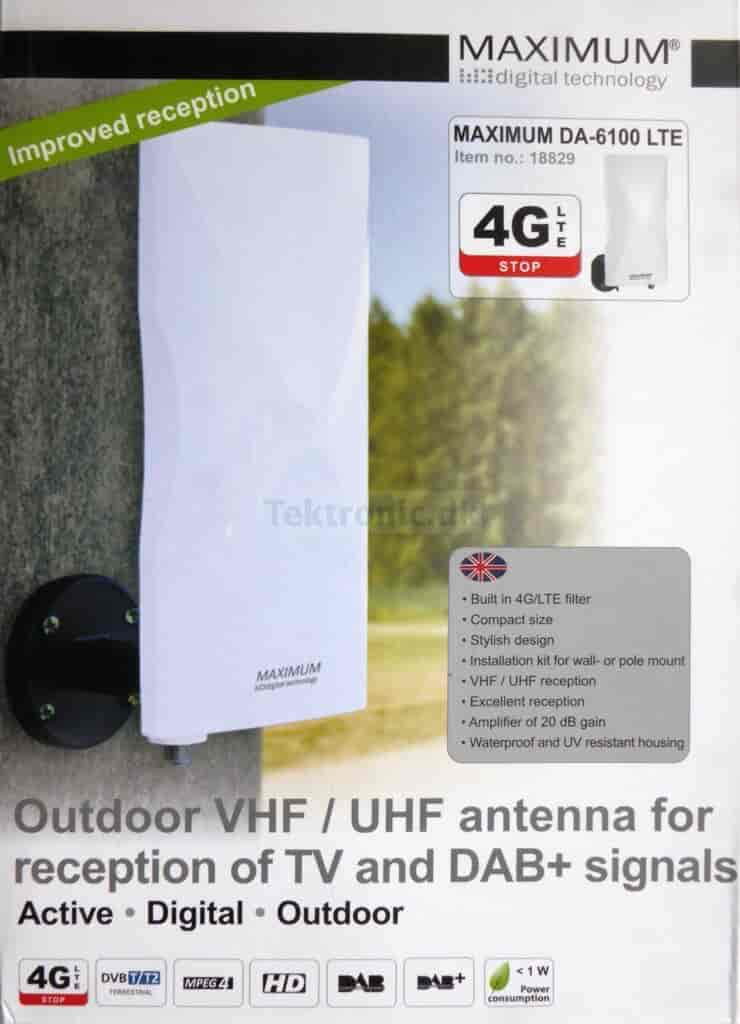

Maximum DA-6100 outdoor DVB-T/T2 antenna with LTE / 4G filter and amplifier.

Maximum DA-6100 outdoor DVB-T/T2 antenna with LTE / 4G filter and amplifier.

Features:

·         Outdoor antenna with built-in filter

·         Water-proof and anti-UV housing

·         Compact and Stylish design

·         Different installation methods, wall-mounted or pole-mounted installation

·         VHF / UHF reception

·         Low noise amplifier technology

Product specifications:

·         Frequency range: UHF470-790 MHz

·         Gain: 12 ± 3 dB

·         Insertion loss: < 2 dB

·         Return loss: 6 dB

·         Power supply options: Adaptor 5 V / 100 mA (included) or DVB-T receiver 5 V / 40 mA

·         Power consumption for included power supply and inserter: <1W

·         RF output impedance: 75 Ohm

·         Adaptor: AC 230V / DC 9V / 100mA

·         Power inserter: DC input 9 ~12 VDC output 5 V

·         LTE Filter attenuation:
793MHz 10dB
803MHz 24dB
820 MHz 57dB

Contents:

·         DA-6100 LTE main unit

·         Fixing base

·         Wall mounting package (plastic pole, screw)

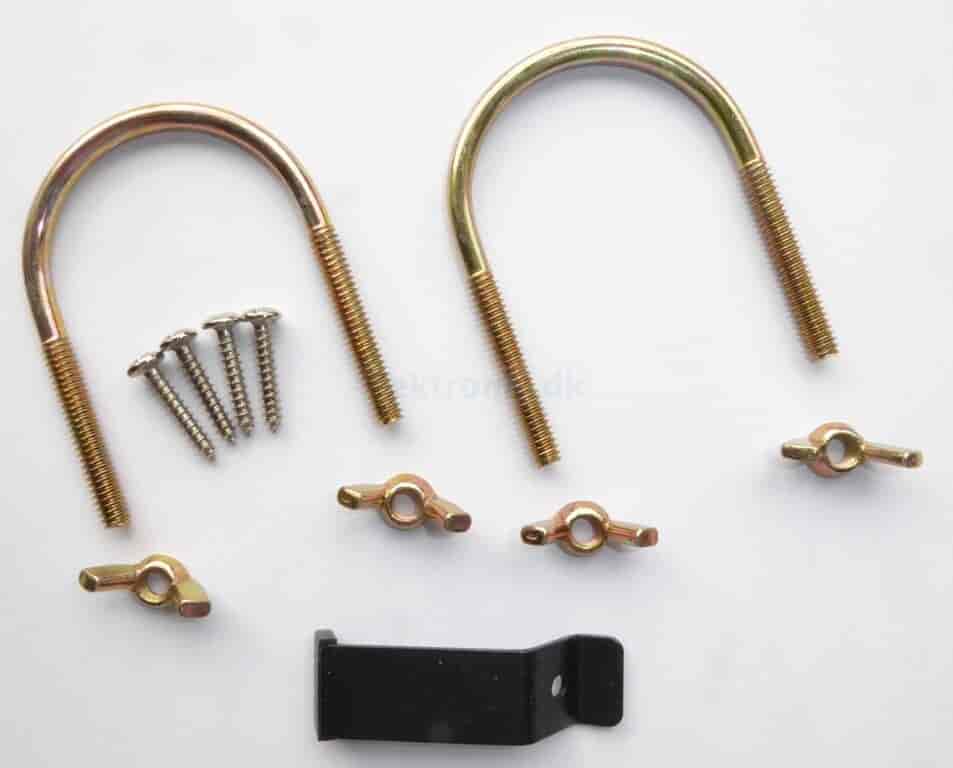

·         Pole Mounting kits (U type screws, butterfly type washer)

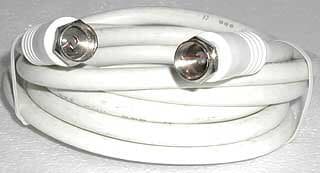

·         Coaxial Cable (RF cable IEC male to IEC female 15 cm; IEC male to F male 3 m)

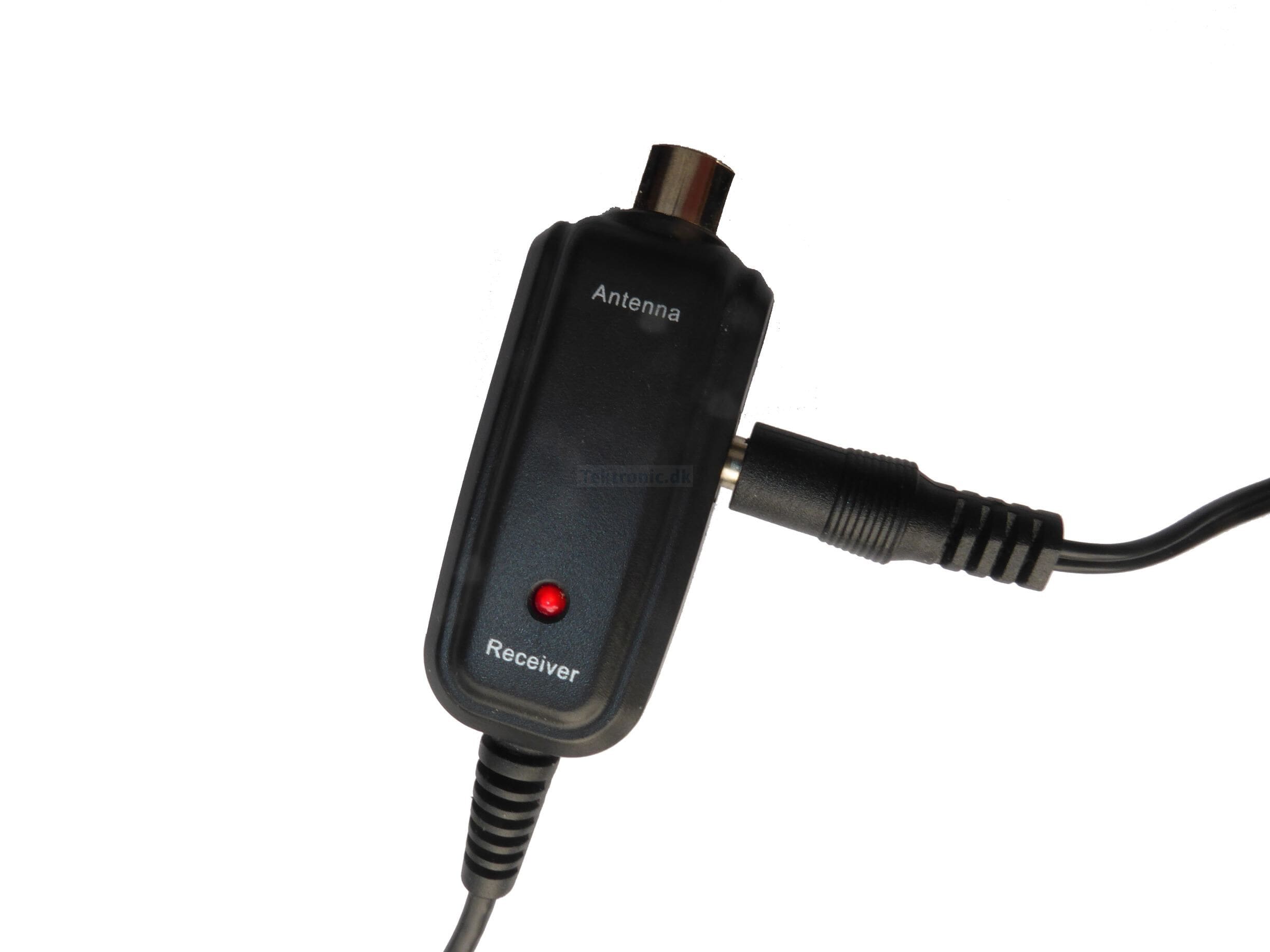

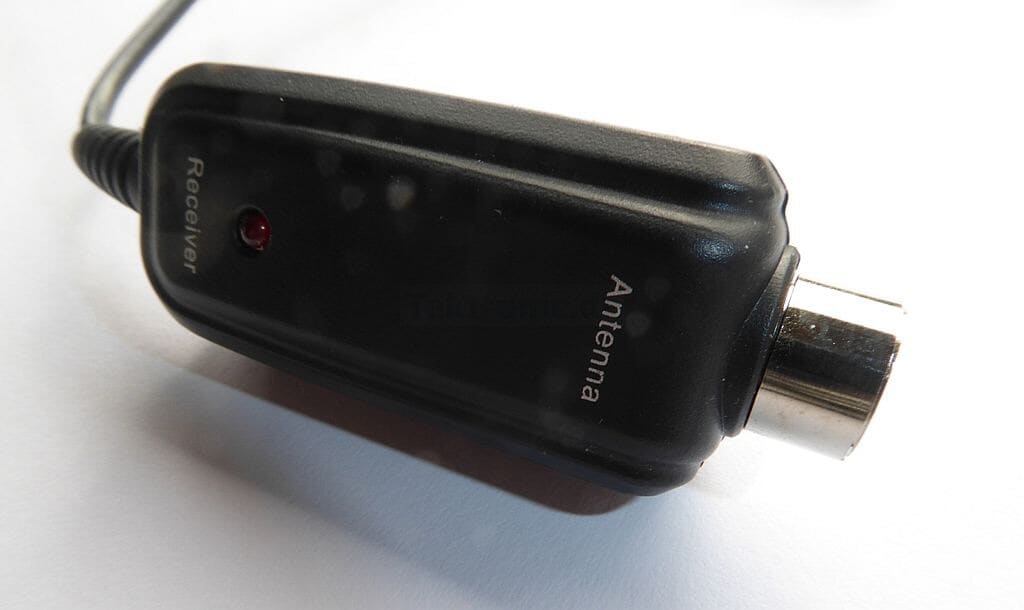

·         Power inserter

·         AC/DC Adaptor

·         Standing support for indoor use

·         Operational Manual
