Maximum UHF antenne type UHF15A LTE

Name: Maximum UHF antenne type UHF15A LTE
Brand: Maximum
SKU: 40078
Price: 749.00 DKK
Availability: InStock

Reference: 40078

kr.749.00

Tax included

749

Incl. VAT - Shipping within 1-2 days

Normally 1-2 days

Maximum UHF 15A LTE active UHF antenna is an outdoor TV antenna with a built-in amplifier (24 dB) for stable reception of digital terrestrial TV signals (DVB-T/DVB-T2). It covers UHF 470-790 MHz and includes an LTE filter to reduce interference around 790 MHz from nearby mobile networks. Supplied partly pre-assembled with an easy "Click" assembly system, so you can get started quickly.

Need a stronger signal with fewer dropouts? UHF 15A is a solid choice for areas with weak to medium coverage, where a passive antenna is often not enough.

Quantity

In stock

1 customer is currently viewing this article.

Ecommerce Europe Trustmark certified

Fast shipping to all EU countries

Easy RMA and returns

Secure payment - protected by strong SSL encryption

Located within EU

Description
Product Details

Active UHF antenna for DVB-T and DVB-T2

Maximum UHF 15A LTE is designed for reception of digital UHF terrestrial TV channels via the antenna network. The built-in amplifier helps increase signal level in locations where coverage is weak, and where long cable runs or multiple connections can otherwise cause pixelation and dropouts. The antenna is made with an aluminium construction for strength and durability in outdoor installations.

Built-in LTE filter (790 MHz) for cleaner reception

Mobile signals can sometimes disturb TV reception and cause picture break-up. UHF 15A is optimized to avoid issues around 790 MHz and includes an LTE/GSM filter to help reduce unwanted interference from nearby mobile networks.

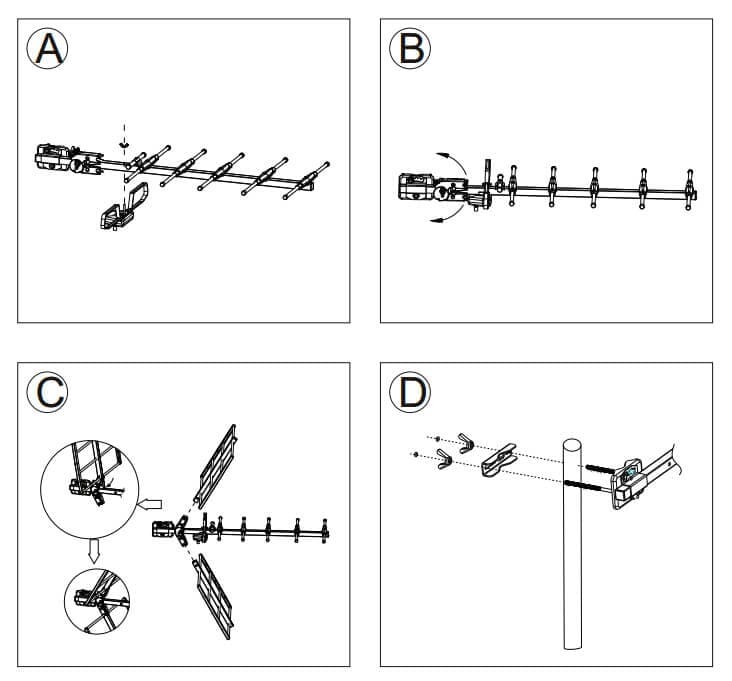

Easy installation with Click system and pre-mounted elements

The antenna is supplied partly assembled with pre-mounted elements and an easy "Click" assembly system. This speeds up installation and reduces the risk of assembly mistakes. The waterproof dipole box uses an F-connector (female), which is a common standard for TV antenna installations.

Protection and status indication

The antenna is short-circuit protected. In case of a short circuit in the supply voltage to the antenna, the orange LED will switch to red.

Technical specifications

Antenna type: Active UHF antenna
Frequency range: 470-790 MHz (UHF channels 21-60)
TV standards: DVB-T, DVB-T2
Amplification (UHF): 24 dB
Max antenna gain: up to 18 dBi
Front-to-back ratio: 24 dB
Horizontal beam width: 42°
Vertical beam width: 55°
Impedance: 75 Ω
LTE/GSM filter: Yes (optimized for 790 MHz)
Number of elements: 15
Placement: Outdoor
Material: Aluminium
Connector: F (female)
Colour: Silver, black
HD support: HD-Ready and Full HD

Power

DC input: 12 V
AC adapter: 110-230 V, 50-60 Hz (included)

Dimensions and packaging

Product length: 74 cm
Net weight: 1.4 kg
Package size (WxHxD): 35 x 75 x 6.5 cm
Gross weight (package): 1.74 kg
Country of origin: China
Tariff No.: 8529103000

Box contents

1 pc. Maximum UHF 15A LTE active UHF antenna
Power supply / AC adapter (12 V)
User manual

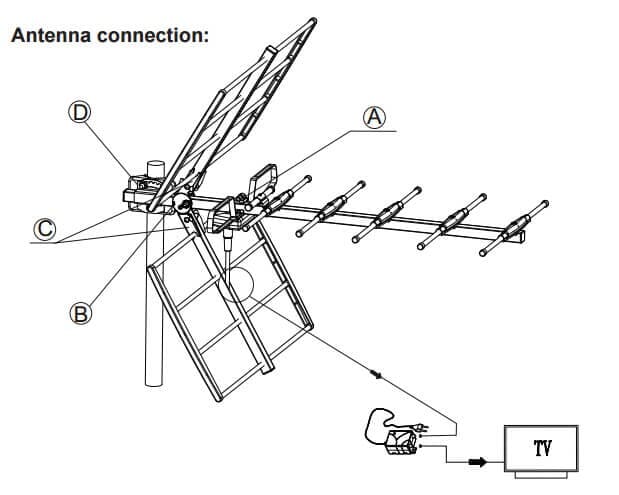

Ready to improve your TV reception? Install the UHF 15A outdoors, connect your coax cable via F-connector, add power, and enjoy a more stable signal with fewer LTE-related issues.
