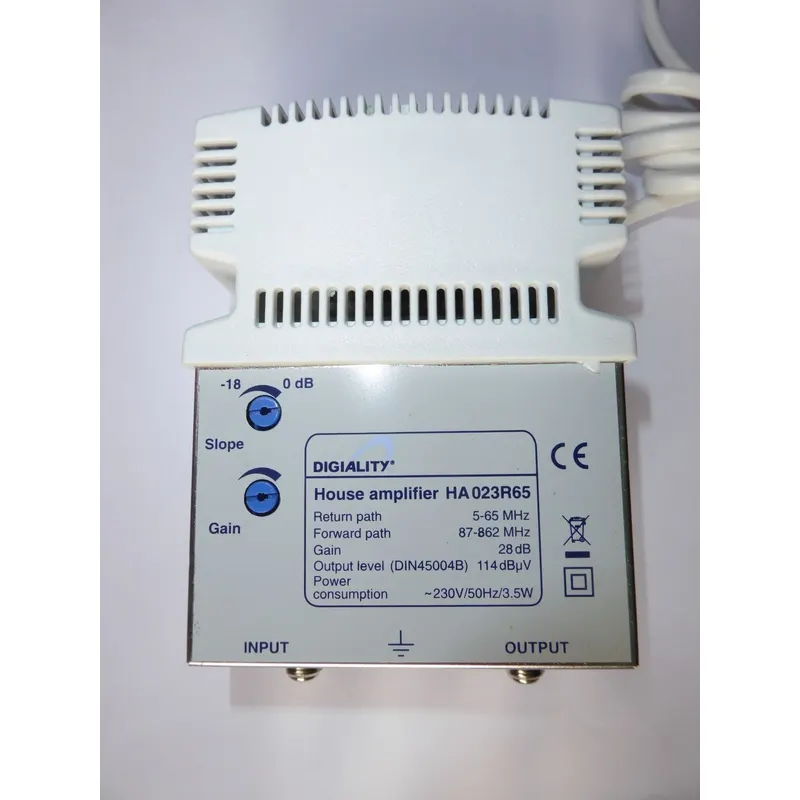

HA 023R65 Broadband amplifier with return path.
  • HA 023R65 Broadband amplifier with return path.
  • HA 023R65 Broadband amplifier with return path.

VHF - UHF amplifier 87-862 MHz with return path

04307
kr.459.00
Tax included
459

Medium power broadband amplifier suitable for small and medium sized distribution networks. Built in power supply, push-pull technology and combined shielded metal-plastic housing. Frequency range 87-862 MHz with return path 5-65 MHz. 1 input / 1 output. 230 V. AC

Quantity
Out-of-Stock

Shopping Cart Icon 1 customer is currently viewing this article.
  • Ecommerce Europe Trustmark certified Ecommerce Europe Trustmark certified
  • Fast shipping to all EU countries Fast shipping to all EU countries
  • Easy RMA and returns Easy RMA and returns
  • Secure payment - protected by strong SSL encryption Secure payment - protected by strong SSL encryption

Apartment amplifier / House amplifier

Maximal output IMD3=60 dB(DIN45004B) 114 dBµV
Maximal output IMD3=60 dB(EN50083-3) 108 dBµV
Maximal output IMD2=60 dB(EN50083-3) 108 dBµV
Gain adjustment: 20 dB
Slope adjustment: - 18 dB
Frequency response ± 0.7 dB
Gain: 28 dB
Power: 230 V/50 Hz/3 VA

04307

Data sheet

Length
128 mm.
Height
88 mm.
width / Depth
50 mm.
Gain dB
28 dB
Power:
230 V AC
Temperature (Celsius)
-20...+50 °C
