TEK77 Clamp Ø76 mm.

What it is

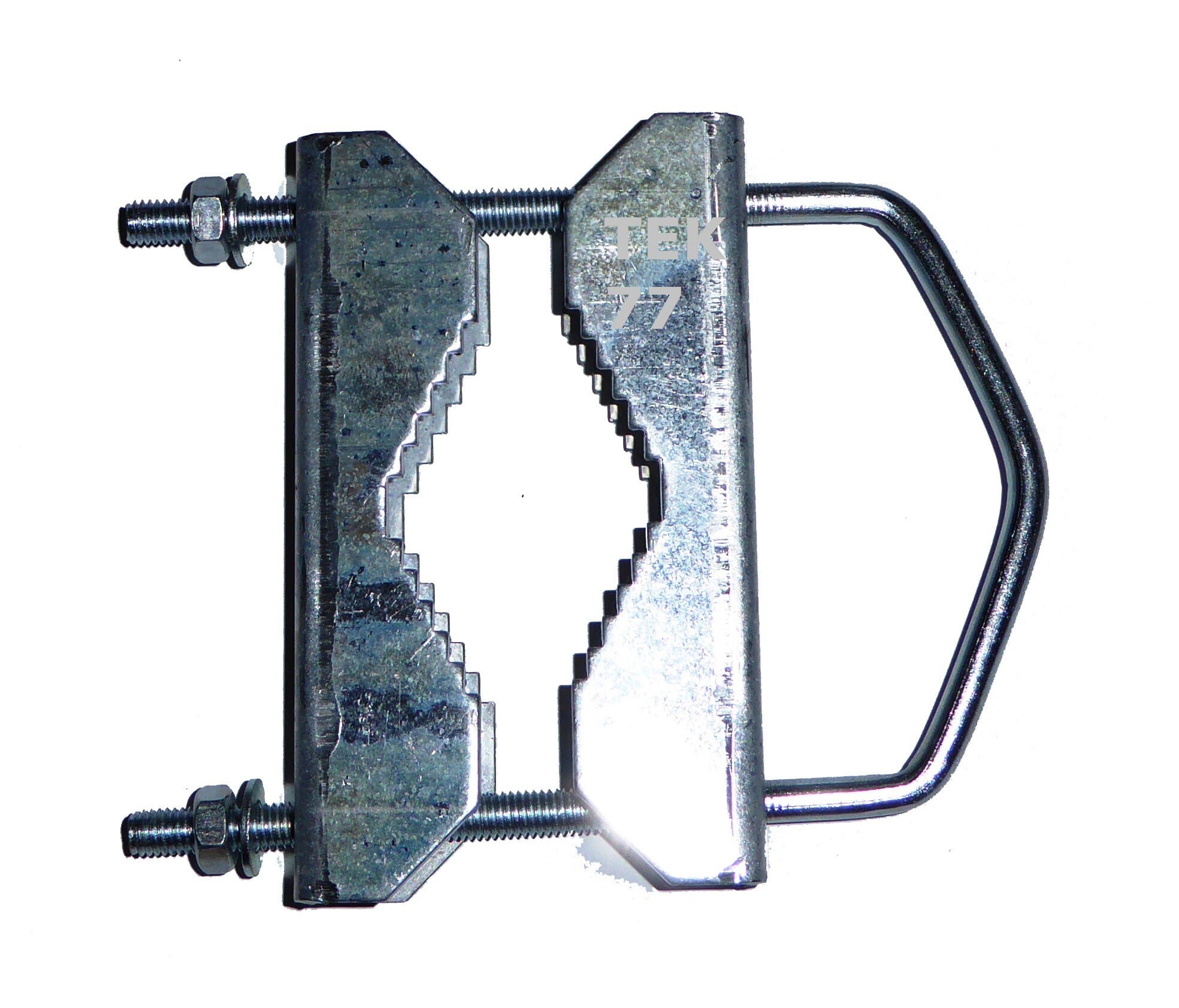

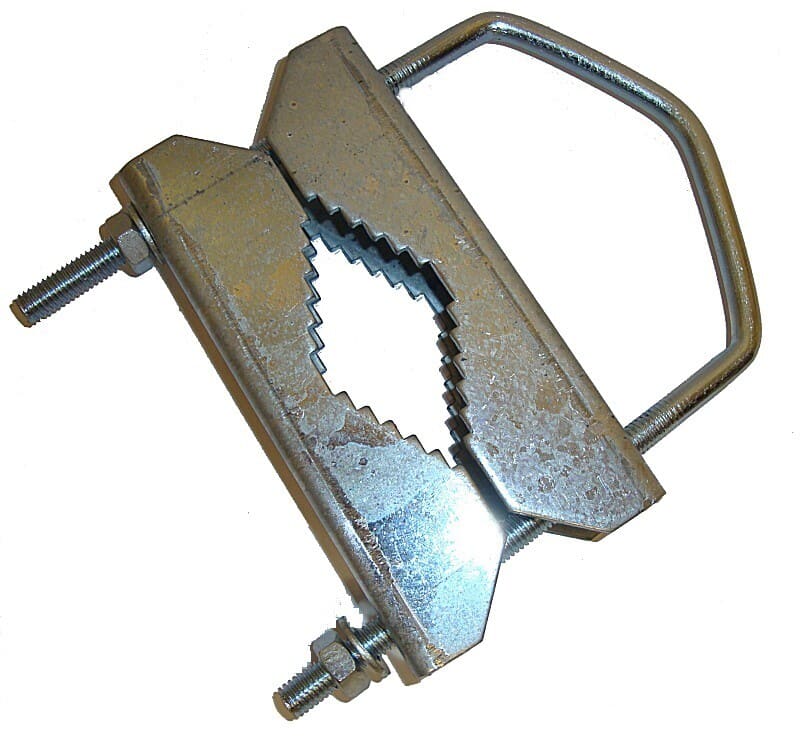

TEK77 is a steel mast clamp/bracket designed for mounting a mast tube with an outside diameter of 76 mm. The design uses two clamp straps and a curved saddle, making it suitable when you need to fasten onto round parts while keeping the mast tube firmly in place.

Typical applications

• Mounting an antenna mast tube in outdoor installations
• Satellite dish and terrestrial antenna setups that use a 76 mm mast tube
• General mounting tasks where a strong clamp with M8 hardware is required

Key features

• Made for 76 mm mast tubes (outside diameter)
• M8 threaded mounting system
• Two clamp straps plus curved saddle for mounting on round parts
• Steel construction

Technical data

• Fits mast tube: 76 mm outside diameter
• Thread: M8
• Length: 150 mm
• Inner leg width: 92 mm
• Material/finish: steel
• Reference: 04086
• EAN: 0750122584802

Package contents

• TEK77 bracket assembly with 2 clamp straps and curved saddle (as shown)

Installation notes

• Confirm mast tube diameter before ordering (this model is for 76 mm tubes)
• For outdoor use, ensure appropriate corrosion protection on the full installation (fasteners, contact surfaces, etc.)
• Tighten evenly to achieve a stable, non-twisting fit

Need help choosing the right clamp? Tell us your mast diameter and mounting situation, and we will guide you to the correct bracket.
