Dreambox DM920 Ulta HD 4K 2 x DVB-S2 FBC Dual Tuner
Dreambox DM920 UHD 4K 2 x DVB-S2 FBC Dual tuners. The first Ultra-HD Dreambox combines all the quality features for which the Dreambox brand is renowned worldwide: powerful hardware, enormous computing power as well as the continuously evolved Dreambox OS provide the foundation of an Ultra-HD media system that is optimally prepared for the demands of the digital TV of the future. For SAT TV and IPTV.
Ecommerce Europe Trustmark certified
Fast shipping to all EU countries
Easy RMA and returns
Secure payment - protected by strong SSL encryption
Features for Dreambox DM920 UHD 4K DVB-S2:
- 2 x Dual/twin tuner DVB-S2 FBC tuners
- Dreambox OS
- Dreambox API
- Ultra-fast dual-core CPU DMIPS 12K
- Broadcom BCM 45308X chip
- 2 x HDMI (input and output)
- 3 inch color LCD
- Touch On/Off sensor
- MPEG-2 / H.264 Decoder (Full HD)
- H.265 decoder (Ultra HD)
- 1 x smartcard reader
- 1 x SD-cardreader
- 2 x Common Interface slot - FPGA technology for parallel use.
- 2 x Tuner slots for variable tuner configuration.
- 2 GB RAM
- 8 GB Flash
- Gigabit Ethernet
- USB 3.0
- Mini USB serviceport (Flash Rescue)
- S / PDIF-udgang
- Automatic scanning
- 2,5" harddisk (option - not included in standard version)
- Wifi (option - not included -)
- Web Interface for PC and Smartphone
Please not that Dreambox DM920 Ultra HD 4K receiver can be ordered in the following versions: PVR ready (no harddisk), 500 GB, 1000 GB or 2000 GB built in harddisk.

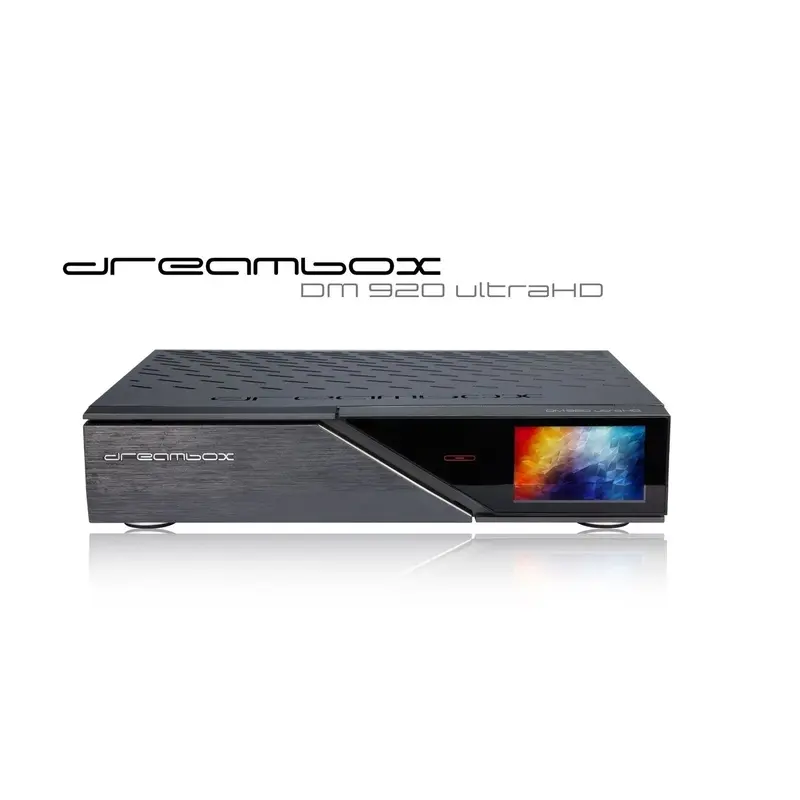

Illustration shows Dreambox DM920 mounted with only one tuner. This article number contains 2 x FBC Dual tuners. Note the expanded HDD bay that can handle up to 15 mm. high HDD's.
To fully exploit the Dreambox FBC DVB-S2 Twin tuner, it is recommended that you use LNB devices SatCR or Unicable type. Setting up tuners with SatCR/Unicable in combination with FBC tuners can be complex and often requires good technical insight.
- DVB Type
- SAT DVB-S + DVB-S2
- 2 x FBC DUAL DVB-S2 tuners for reception of SD and HD TV channels via SAT.Full Bandwidth capture
- Smartcard reader
- Yes, Dreamcrypt card reader
- Memorycard reader
- Yes, SD memorycard
- Yes, 2 X CA modules can be used in parrallel
- S/PDIF digital bitstream out
- Yes, 1 x HDMI 1.4 IN and 1 x HDMI 2.0 OUT
- Processor, speed
- 12000 DMIPS
- 2 GB.
- 8 GB eMMC
- 12000 DMIPS Dual core CPU
- MPEG2/H.264 + H.265 HEVC
- Yes, DiSeqC 1.0, 1.1, 1.2, USALS, Unicable
- Web interface for PC and smartphone
- Internal HDD can be installed
- EPG (Electronic program guide)
- Automatic Channel search
- Network connection
- Yes,, 10/100 MBit/s og Gigabit kompatibel Ethernet Interface
- Dreambox OS
- USB service port
- 270 mm.
- 60 mm.
- width / Depth
- 187 mm.
- For reception of
- DVB-S2 SAT HDTV signals
- Audio formats supported
- Dolby Digital 2.0 Stereo
- Protocol / version
- HDMI 2.0
- PVR Ready - Harddisk can be installed, but not included.
- User manual
- Indbygget guide / hjælpefunktioner
- USB 3.0
- Broadcom BCM45308x
- 3D Ready
- Tuner slots
- 2. ( 2 x DVB-S2 dual tuners FBC, 0 x empty)
