Dreambox DM920 UHD 4K E2 Linux receiver 1 x DVB-S2 FBC Dual Tuner for HDTV SAT

Dreambox DM920 Ulta HD 4K 1 x DVB-S2 FBC Dual Tuner

Name: Dreambox DM920 Ulta HD 4K 1 x DVB-S2 FBC Dual Tuner
Brand: Dream Multimedia - Dream Property
SKU: 05725
Price: 2995.00 DKK
Availability: InStock

Reference: 05725

kr.2,995.00

Tax included

2995

Dreambox DM920 UHD 4K 1 x DVB-S2 FBC Dual tuners. The first Ultra-HD Dreambox combines all the quality features for which the Dreambox brand is renowned worldwide: powerful hardware, enormous computing power as well as the continuously evolved Dreambox OS provide the foundation of an Ultra-HD media system that is optimally prepared for the demands of the digital TV of the future. For SAT TV and IPTV.

HDD

Quantity

Out-of-Stock

2 customers are currently viewing this article.

Ecommerce Europe Trustmark certified
Fast shipping to all EU countries
Easy RMA and returns
Secure payment - protected by strong SSL encryption

Description
Product Details

Features for Dreambox DM920 UHD 4K DVB-S2:

1 x Dual/twin tuner DVB-S2 FBC tuner
Dreambox OS
Dreambox API
Ultra-fast dual-core CPU DMIPS 12K
Broadcom BCM 45308X chip
2 x HDMI (input and output)
3 inch color LCD
Touch On/Off sensor
MPEG-2 / H.264 Decoder (Full HD)
H.265 decoder (Ultra HD)
1 x smartcard reader
1 x SD-cardreader
2 x Common Interface slot - FPGA technology for parallel use.
2 x Tuner slots for variable tuner configuration.
2 GB RAM
8 GB Flash
Gigabit Ethernet
USB 3.0
Mini USB serviceport (Flash Rescue)
S / PDIF-udgang
Automatic scanning
2,5" harddisk (option - not included in standard version)
Wifi (option - not included -)
Web Interface for PC and Smartphone

Please not that Dreambox DM920 Ultra HD 4K receiver can be ordered in the following versions: PVR ready (no harddisk), 500 GB, 1000 GB or 2000 GB built in harddisk.

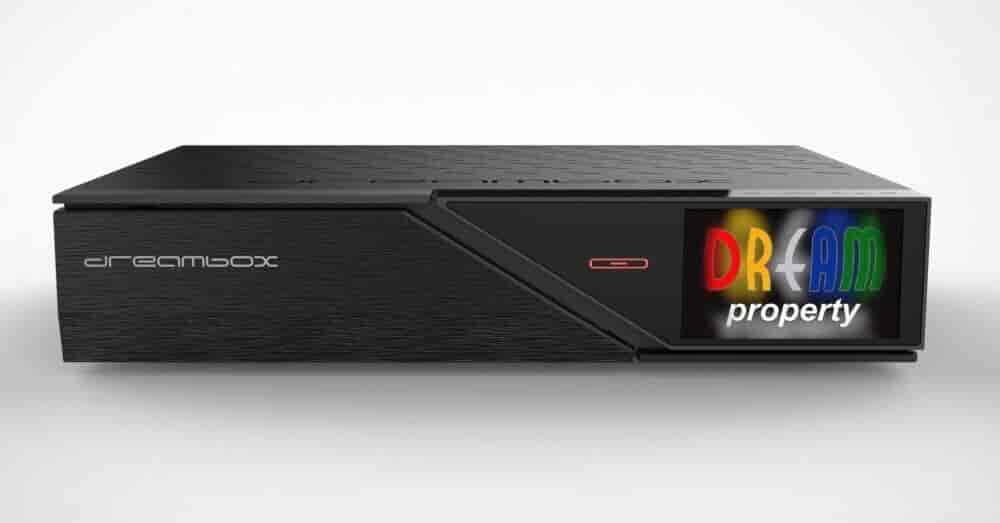

Illustration shows Dreambox DM920 mounted with one standard dual DVB-S2 tuner. This article number contains 1 x FBC Dual tuner for DVB-S2 reception. Note the expanded HDD bay that can handle up to 15 mm. high HDD's.

To fully exploit the Dreambox FBC DVB-S2 Twin tuner, it is recommended that you use LNB devices SatCR or Unicable type. Setting up tuners with SatCR/Unicable in combination with FBC tuners can be complex and often requires good technical insight.

Reference 05725

Availability date: 2017-12-15

Data sheet

Colour: Black
DVB Type: SAT DVB-S + DVB-S2
Tuner: 1 x FBC DUAL DVB-S2 tuner for reception of satellite signals. Full Bandwidth capture
Smartcard reader: Yes, Dreamcrypt card reader
Memorycard reader: Yes, SD memorycard
CI-slot: Yes, 2 X CA modules can be used in parrallel
S/PDIF digital bitstream out: Yes
HDMI: Yes, 1 x HDMI 1.4 IN and 1 x HDMI 2.0 OUT
Processor, speed: 12000 DMIPS
RAM: 2 GB.
Flash: 8 GB eMMC
Processor: 12000 DMIPS Dual core CPU
Decoder: MPEG2/H.264 + H.265 HEVC
DiSEqC: Yes, DiSeqC 1.0, 1.1, 1.2, USALS, Unicable
Web interface for PC and smartphone: Yes
PVR: Internal HDD can be installed
EPG (Electronic program guide): Yes
Videotext: Yes
Automatic Channel search: Yes
Network connection: Yes,, 10/100 MBit/s og Gigabit kompatibel Ethernet Interface
OS: Dreambox OS
USB service port: No
Length: 270 mm.
Height: 60 mm.
width / Depth: 187 mm.
For reception of: DVB-S2 SAT HDTV signals
Properties: E2
Audio formats supported: Dolby Digital 2.0 Stereo
Protocol / version: HDMI 2.0
Harddisk: PVR Ready - Harddisk can be installed, but not included.
User manual: Indbygget guide / hjælpefunktioner
USB 3.0: Yes
Chipset: Broadcom BCM45308x
HbbTV: Yes
3D Ready: Yes
Tuner slots: 2. ( 1 x DVB-S2 dual tuners FBC, 1 x empty)
