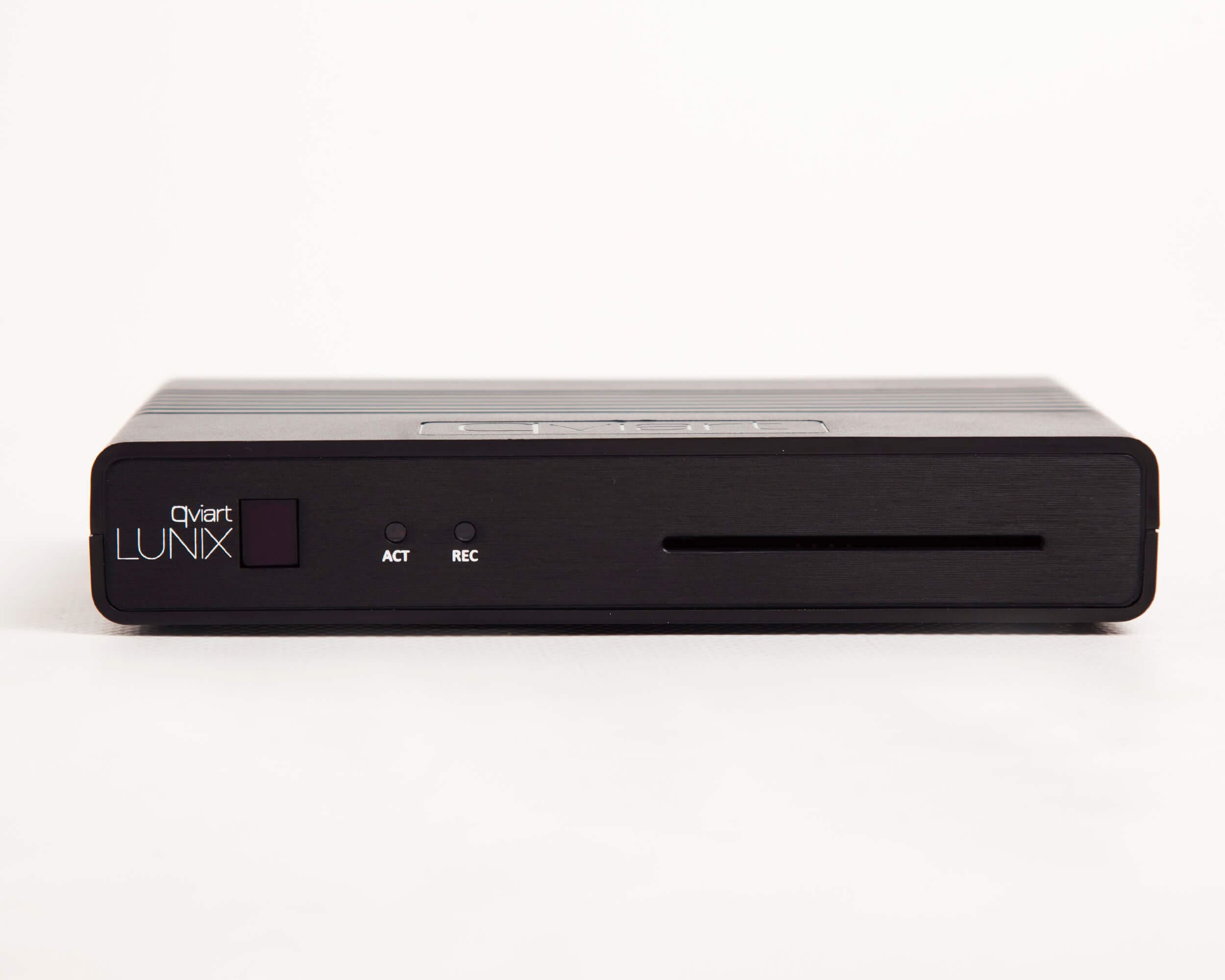

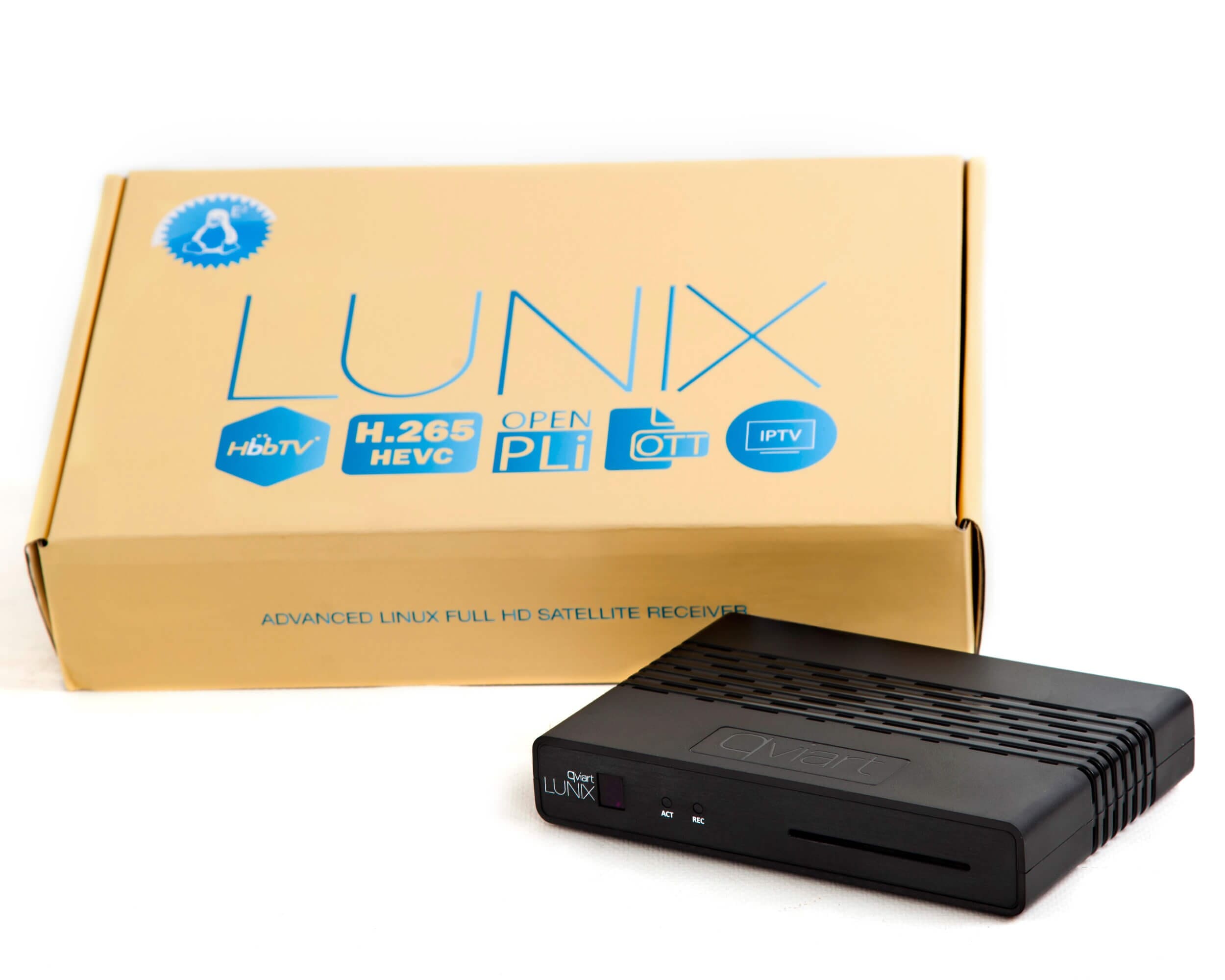

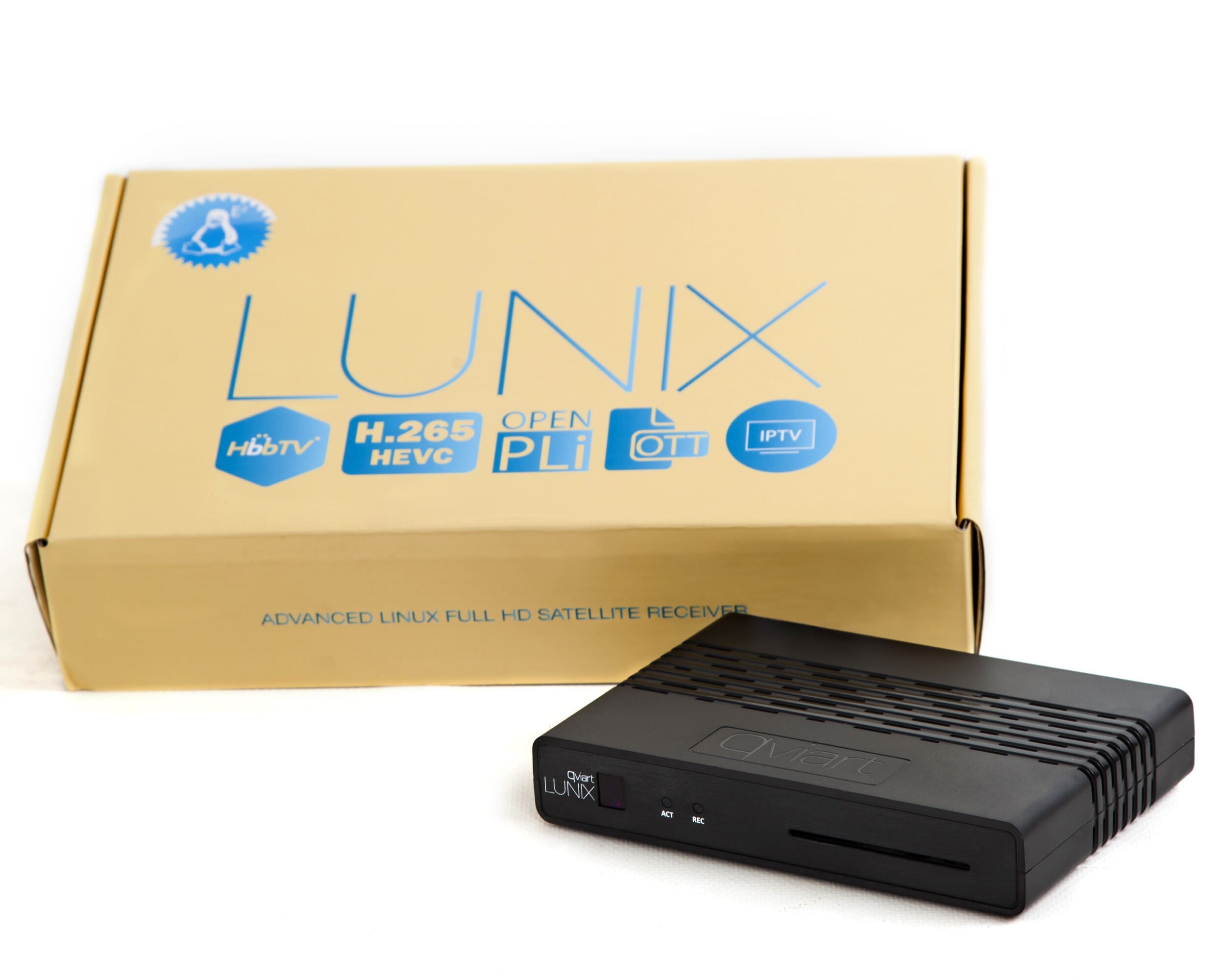

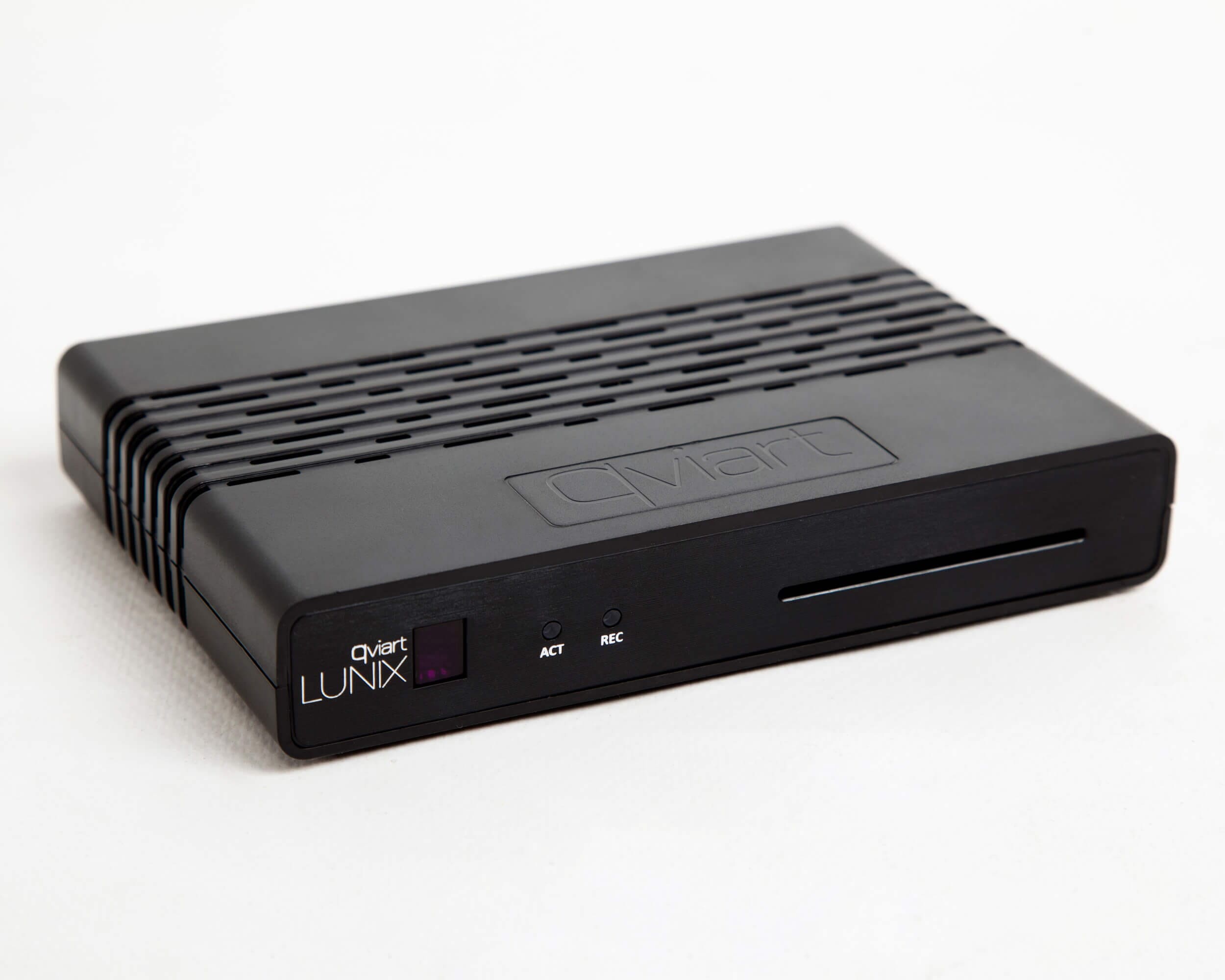

Qviart Lunix DVB DVB-S and IPTV

10801

New product

Qviart Lunix is a super compact, high-performance, FULL HD H265 HEVC HbbTV digital receiver for receiving signals via satellite. Qviart Lunix is a Linux E2 box based on the powerful Broadcom 751 MHz Dual Core 2000 DMIPS processor. A strong alternative to other good E2 boxes - at a very attractive price. A great deal if you appriciate many features at a low price.

In Stock

649,00 kr

-90,00 kr

739,00 kr

Data sheet

DVB TypeSAT DVB-S + DVB-S2
Tuner1 x DVB-S2 for reception of SD and HD channels via SAT
Smartcard readerYes
CI-slotNo
S/PDIF digital bitstream outYes
HDMIYes, 1 x HDMI 1.4
Processor, speed2000 DMIPS
RAM512 Mbyte
Flash256 Mbyte
Processor2000 DMIPS 750 MHz Broadcom BCM73625
DecoderMPEG2/H.264 + H.265 HEVC
USB 2.0Yes, 2 x USB 2.0
DiSEqCYes, DiSEqC 1.0, 1.1, 1.2, USALS
Web interface for PC and smartphoneYes
PVRYes, via USB connection
EPG (Electronic program guide)Yes
VideotextYes
Automatic Channel searchYes
Network connectionYes, 10/100 MBit/s compatible Ethernet Interface
OSLunux + E2
Length154 mm.
Height26.5 mm.
width / Depth104,5 mm.
For reception ofDVB-S2 SAT HDTV signals
Power:12 Volt
ColourBlack
Warranty2 Years
RoHSYes
Standby powerconsumptionMax. 0.5 W
OSD languages availableMulti
HbbTVYes

More info

Qviart Linux


Qviart Lunix is a super compact, high-performance, FULL HD H265 HEVC HbbTV digital receiver for receiving signals via satellite. Qviart Lunix is a Linux E2 box based on the powerful Broadcom 751 MHz Dual Core 2000 DMIPS processor. A strong alternative to other good E2 boxes - at a great price.

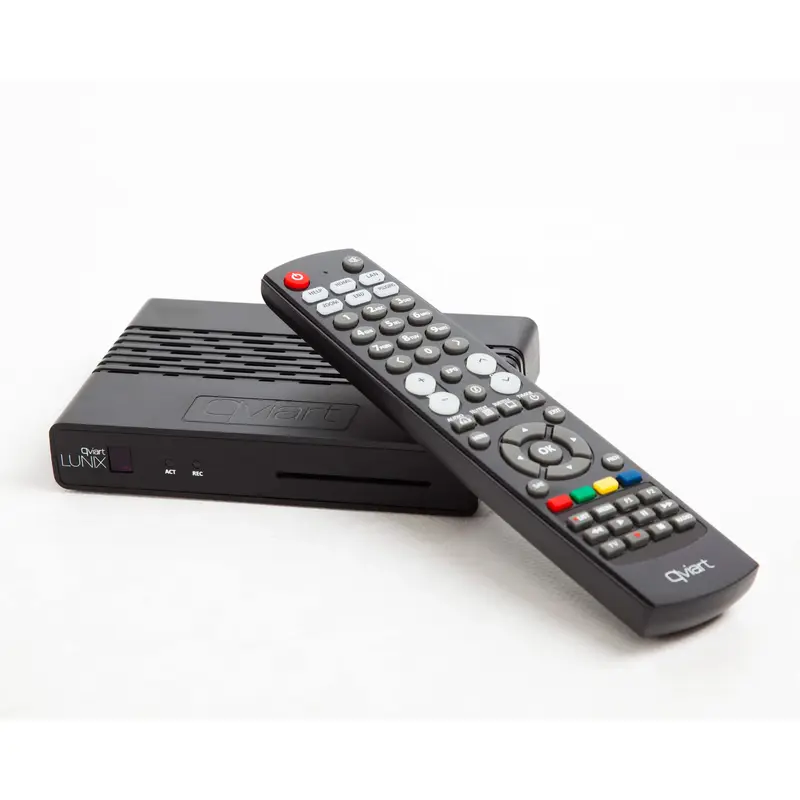

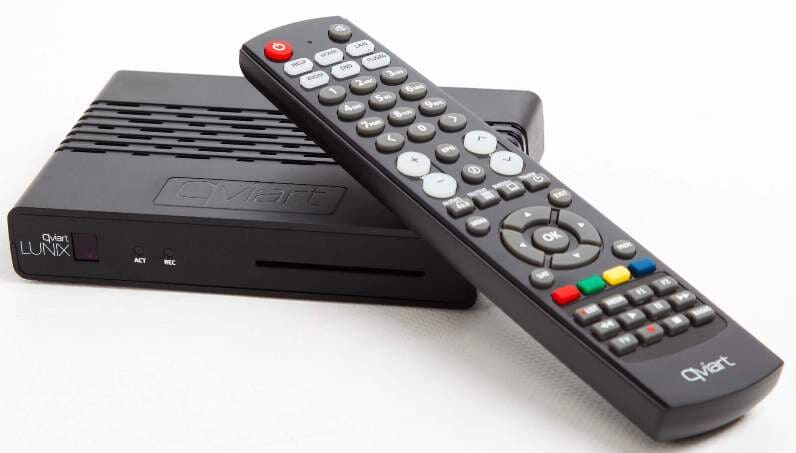

Qviart Lunix STB - Distributed by Tektronic.dk

Qviart Lunix is a Linux-based Enigma2 TV box designed to receive digital TV via satellite dish (DVB-S and DVB-S2X). Qviart Lunix is based on the Broadcom BCM73625 750 MHz 2K DMIPS processor and delivers, despite the small physical dimensions, an impressive image and many features.

Qviart Lunix comes as standard with the open OpenPli operating system. OpenPli is open source software and can be adapted to your needs. Smartcard reader, LAN port, HDMI 1.4, SPDIF, DiSEqC 1.3 USALS, 2 x USB 2.0 for PVR, full MPEG-2, MPEG-4, H.265 / HEVC and HDMI connection make Qviart Lunix an exciting box with many possibilities . Qviart Lunix can be used as it is, but caters to those who are fascinated by the possibilities new technology offers, including the Linux-based Enigma2.

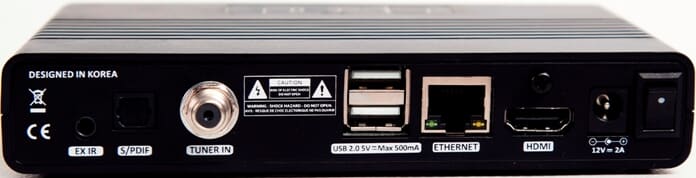

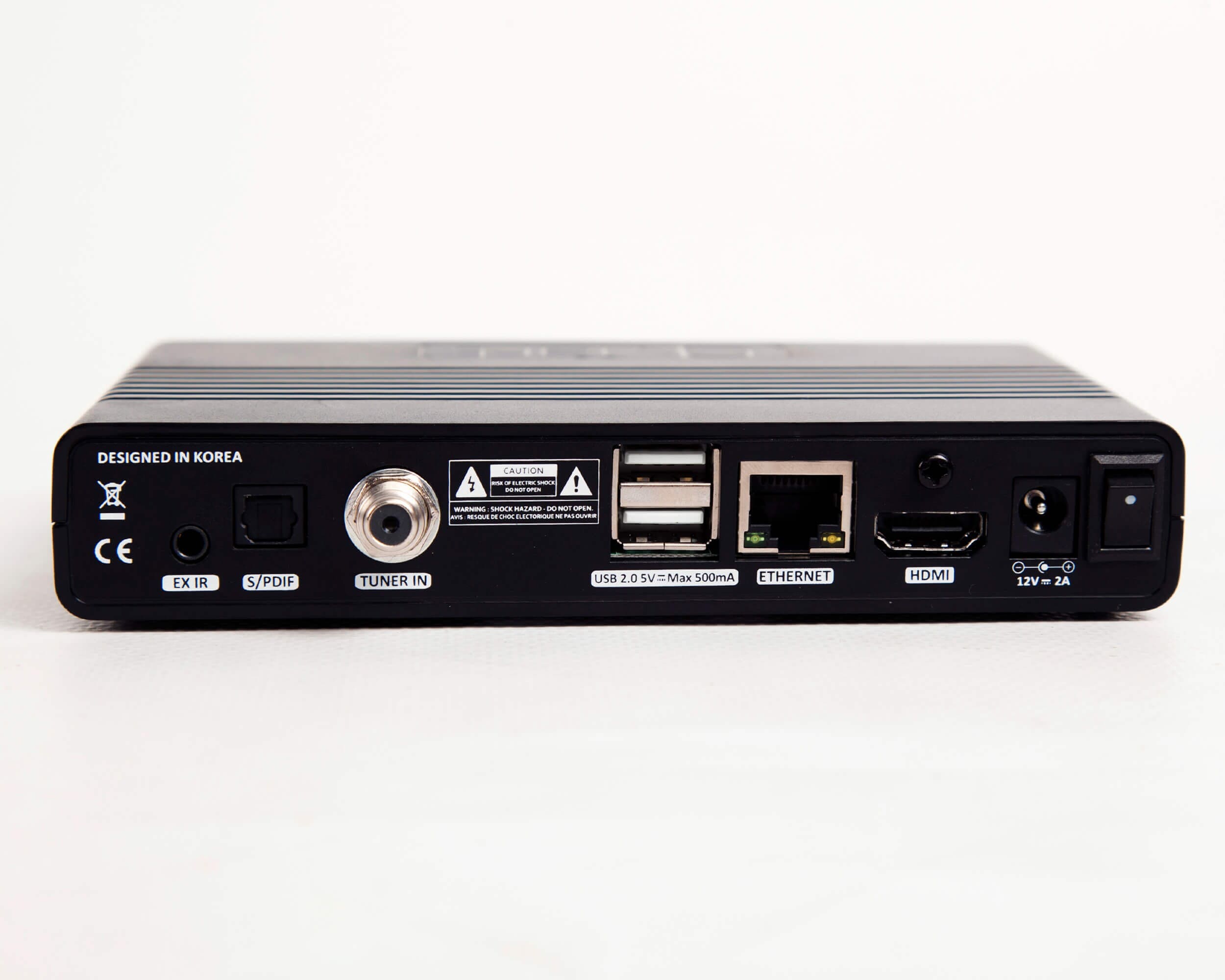

At the back of the Qviart Lunix you will find the following connections: option for connection of IR eye, S/PDIF digital audio output, connection of satellite dish, 2 x USB 2.0 which allows connection of USB storage medium for recording, 10/100 LAN connection, HDMI connection for your monitor and power connector and switch.

Qviart Lunix TV Box for satellite dish reception

Qviart Lunix STB connections - distributed by Tektronic.dk

Features for Qviart Linux:

  • High-sensitivity tuner
  • E2 based
  • Broadcom Chip BCM73625 750 MHz
  • DVB-S and DVB-S2 compatible
  • 256MB NAND Flash and 512MB DDR3 RAM
  • FULL MPEG-2, MPEG-4 and H.265 / HEVC support
  • 10/100 Mbps full duplex LAN connection
  • HDMI 1.4 connection
  • 1 x card reader
  • 2 x USB 2.0 ports for recording og USB storage
  • Option to connect IR eye
  • Full HD resolution 1080p, 1080i, 720p, 576p, 576i and 3D ready
  • S/PDIF digital optical audio output
  • Timer and multi-event recording to USB or network
  • Multilingual OSD with teletext and subtitles
  • Extended EPG with reservation of recordings
  • DiSEqC support for 1.0, 1.1, 1.2 and USALS (1.3)
  • Supplied via 12 Volt adapter
  • Power consumption in standby below 0.5 W


Qviart Lunix operation is easy via the supplied remote control. The remote control has good big keys. You can also operate Qviart Lunix via Webif. With Webif you can control virtually all functions in Qviart Lunix from your computer. You just enter the box's IP address into your web browser. For example, you can set timer recordings directly from your computer, adjust properties, see EPG and many other things. Recordings can be made via USB 2.0 to USB Sticks or other USB connected storage media. Recordings can also be made to associated network drives or NAS via LAN. Recordings are easily set via EPG function and playlists can be created during playback.

In the package with the Qviart Lunix digital receiver you will find:

  • Connection instructions (English, German, Spanish)
  • Power supply to 230 V.DC mains
  • Remote control

Disclaimer: Lunix software, Qviart Lunix can be modified with third party software. Third party software downloaded from the web and installed in Qviart Lunix quickly gives the box completely new and exciting functionality. However, please note that we do not provide support for third party software and that the use of third party software may result in the termination of warranty. Qviart Lunix is not "approved" by providers - it's way to flexible for that.
