Spaun SUR 420 F - Universal SAT relæ / DiSEqC switch. TOP QUALITY.
  • Spaun SUR 420 F - Universal SAT relæ / DiSEqC switch. TOP QUALITY.
  • Spaun SUR 420 F - Universal SAT relæ / DiSEqC switch. TOP QUALITY.
  • Spaun SUR 420 F - Universal SAT relæ / DiSEqC switch. TOP QUALITY.
  • Spaun SUR 420 F - Universal SAT relæ / DiSEqC switch. TOP QUALITY.

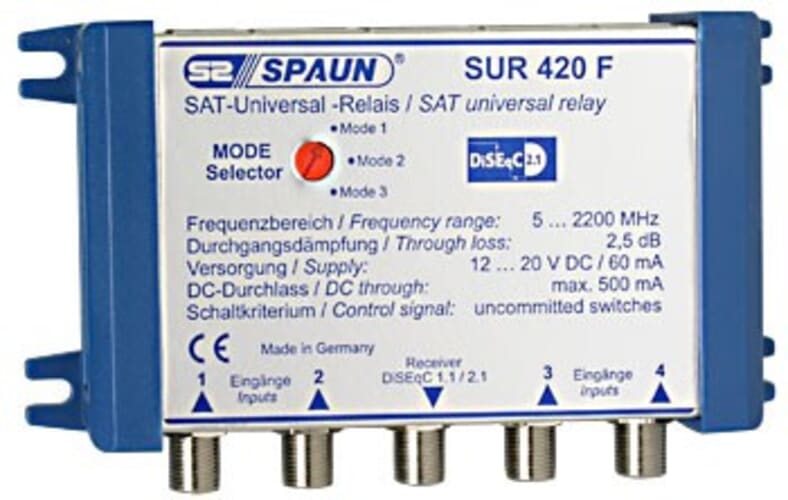

Spaun SUR420F DiSEqC switch 4-1

06018
kr.498.00
Tax included
498
Normally 1-2 days

Spaun SUR420F. Topquality DiSEqC switch. Universal relay for the uncommitted switches 140 x 82 x 38 mm To multiplex four downlead cables Control signal selectable: Mode1, Mode2, Mode3 Cascadable, up to 256 IF signals selectable DiSEqC 1.1 / 2.1 receiver required

Quantity
In stock

Shopping Cart Icon 3 customers are currently viewing this article.
  • Ecommerce Europe Trustmark certified Ecommerce Europe Trustmark certified
  • Fast shipping to all EU countries Fast shipping to all EU countries
  • Easy RMA and returns Easy RMA and returns
  • Secure payment - protected by strong SSL encryption Secure payment - protected by strong SSL encryption

Spaun SUR 420 F

Universal relay for the uncommitted switches 140 x 82 x 38 mm To multiplex four downlead cables Control signal selectable: Mode1, Mode2, Mode3 Cascadable, up to 256 IF signals selectable DiSEqC 1.1 / 2.1 receiver required Through loss: 2,5 dB Switching isolation Terr.: > 40 dB Switching isolation SAT: > 26 dB Supply: 12...20 V DC / 30 mA DC through: max. 500 mA DiSEqC 2.1

06018

Data sheet

Frequency range
5 - 2200 ;Hz
Power:
12 - 20 V DC
insertion loss, dB
2.5 dB
Connector type
F-connector
RoHS
Yes
