Spaun SUR 420 WSG- Universal SAT relay / DiSEqC switch. TOP QUALITY.
  • Spaun SUR 420 WSG- Universal SAT relay / DiSEqC switch. TOP QUALITY.
  • Spaun SUR 420 WSG- Universal SAT relay / DiSEqC switch. TOP QUALITY.
  • Spaun SUR 420 WSG- Universal SAT relay / DiSEqC switch. TOP QUALITY.
  • Spaun SUR 420 WSG- Universal SAT relay / DiSEqC switch. TOP QUALITY.

Spaun SUR 420 WSG DiSEqC switch 4-1 antenna relay

06030
kr.529.00
Tax included
529
Normally short time

Spaun SUR 420 WSG. Top quality DiSEqC switch / SAT antenna relay. Universal relay for the uncommitted switches to multiplex four downlead cables Control signal selectable: Mode1, Mode2, Mode3 Cascadable, up to 256 IF signals selectable DiSEqC 1.1 / 2.1 receiver required.

Quantity
Not in stock

Shopping Cart Icon 6 customers are currently viewing this article.
  • Ecommerce Europe Trustmark certified Ecommerce Europe Trustmark certified
  • Fast shipping to all EU countries Fast shipping to all EU countries
  • Easy RMA and returns Easy RMA and returns
  • Secure payment - protected by strong SSL encryption Secure payment - protected by strong SSL encryption

Spaun SUR 420 WSG

Universal relay for the uncommitted switches 140 x 82 x 38 mm To multiplex four downlead cables Control signal selectable: Mode1, Mode2, Mode3 Cascadable, up to 256 IF signals selectable DiSEqC 1.1 / 2.1 receiver required Through loss: 2,5 dB Switching isolation Terr.: > 40 dB Switching isolation SAT: > 26 dB Supply: 12...20 V DC / 30 mA DC through: max. 500 mA DiSEqC 2.1

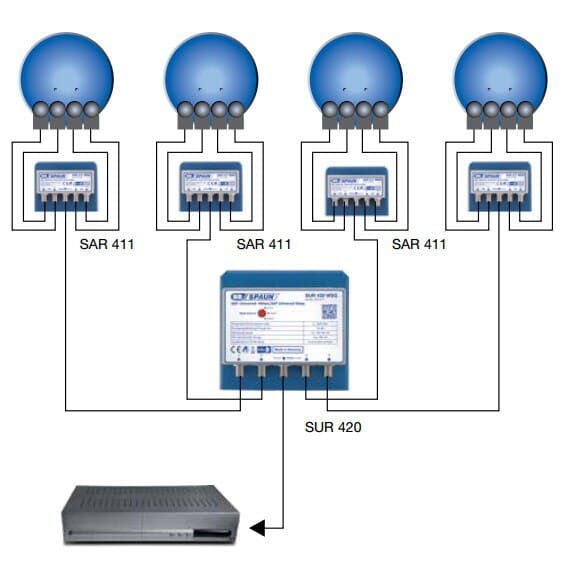

Example:

Spaun SUR 420 WSG setup example

06030

Data sheet

For reception of
DVB-S2 SAT HDTV signals
Frequency range
5 - 2200 ;Hz
Power:
12 - 20 V DC
DC pass (yes/no)
Ja
insertion loss, dB
2.5 dB
Connector type
F-connector
Inputs
4
Protocol / version
DiSEqC 1.1 / 2.1
Mounting
Skruemontering eller strips
Power consumption
Max 60 mA
Warranty
2 Years
RoHS
Yes
