MAG420w1 4K Linux based STB

98648

New product

MAG420w1 is a powerful and cost-effective solution that quickly gets your IPTV / OTT project started. The MAG420w1 Set-top box is equipped with an ARM Cortex-A53 processor on the Hi3798MV200 chipset and with a built-in HEVC codec. 4K video at 60 fps plays seamlessly with minimal network load.

Product is not in stock for the moment - please contact us for time of delivery

849,00 kr

Data sheet

Product typeIPTV Set Top box (Streamer box)
ColourBlack
HDMIHDMI
Processor, speed15000 DMIPS
RAM512 Mbyte
Flash512 Mbyte
Processor15000 DMIPS ARM Cortex A-53 Quad Core CPU 1200 MHz
DecoderMPEG2/H.264 + H.265 HEVC
USB 2.0Yes
Network connectionLAN+WiFi
OSLinux 4.4.35
Length132 mm.
Height26 mm.
width / Depth87 mm.
For reception ofIP TV
User manualEN/DE
USB 3.0Yes
ChipsetHi3798MV200
BluetoothBluetooth 4.1

More info

MAG420w1 is a powerful and cost-effective solution that quickly gets your IPTV / OTT project started. The MAG420w1 Set-top box is equipped with an ARM Cortex-A53 processor on the Hi3798MV200 chipset and with a built-in HEVC codec. 4K video at 60 fps plays seamlessly with minimal network load.

MAG420w1 can be connected via WiFi and supports 802.11 b / g / n wireless network. The MAG420w1 can, therefore, be placed freely without regard to the installation of network cables. In addition to IPTV functionality, MAG420w1 can also play content from PC or NAS in your local network. MAG420w1 supports Stream Media Protocols RTSP, RTP, UDP and HTTP.

The MAG420w1 is built on strong hardware (ARM Cortex-A53 Quad Core CPU 1200 MHz and Hi3798MV200 chipset). Together with Linux 4.4.35 and Ministra Multiscreen TV Platform, the hardware provides a strong and stable solution.

Audio and video support is comprehensive:

Audio encoding: MPEG L1 / L2 / L3l, Dolby Digital Plus, AAC-LC, HE AAC V1 / V2, APE, FLAC
Audio format: .ac3, .acc, .ape, .flac, .m4a, .mp3, .ogg, .wav, .wma
Video Mode: PAL, NTSC, 576p, 720p, 1080p, 1080i, 2160p
Video encoding: MPEG1 / 2 MP @ HL, MPEG4 part 2 (ASP), H.265 Main / Main 10@L5.1 High 2160p @ 60 FPS, H.264 AVC High@L5.1 2160p @ 30 FPS, XviD, 3D Supported Video
Video Container: .TS, .AVI, .MPEG, .MP4, .WMV, .MOV, .MKV, .M2TS, .VOB
Image format: JPEG, PNG, BMP, GIF, RAW
Subtitle: DVB, PGS, SRT, SSA / ASS, SUB, Teletext subs, WebVtt, Closed captions
Playlist format: M3U, M3U8, PLS, CUE

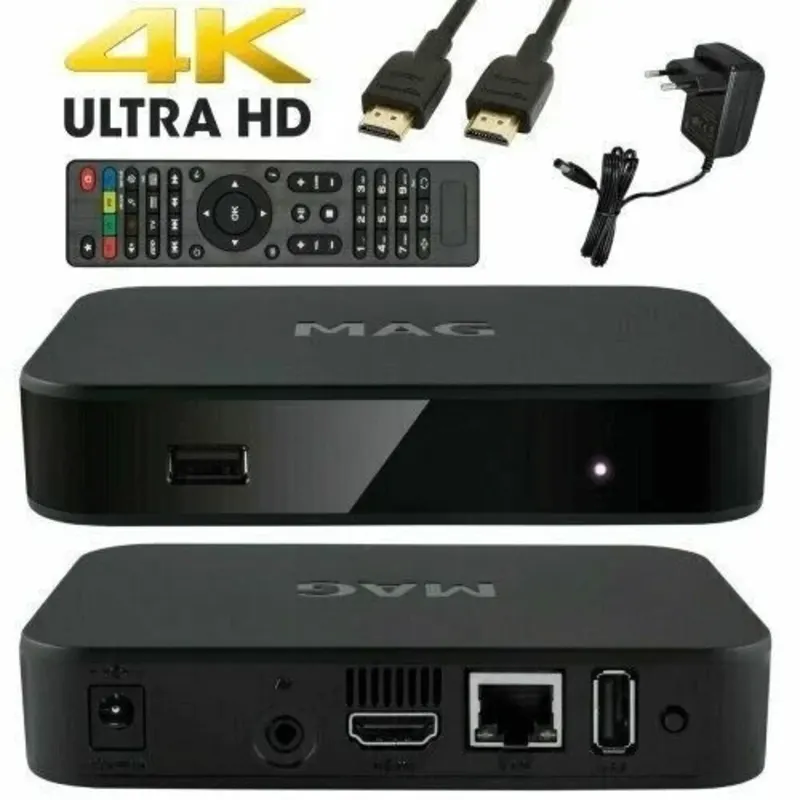

MAG420w1 is not pre-programmed with IP TV transmitters. The MAG 420W1 IPTV Set-Top Box comes complete with power supply, remote control, HDMI cable and concise connection guide in English.
