TVIP v.610 S-Box 4K UHD IPTV Multimedia player

TVIP v.610 S-Box is a compact and reliable TVIP IPTV/OTT media player built for professional, portal-driven IPTV solutions. The TVIP v610 is designed for environments where stability, consistent configuration and central management are key requirements, such as hotels, serviced apartments, offices and multi-room installations.

TVIP middleware and portal integration

TVIP v.610 S-Box supports a wide range of established middleware and portal platforms, including TVIP TMS, IPTVPORTAL, Open JSON API, Stalker, Micro Impulse, Smotreshka and HTML5 / JS portals. This allows system integrators and IPTV operators to deliver channels, VOD and user interfaces entirely through a central portal.

• TVIP TMS support for IPTV platform management
• Compatibility with HTML5 / JS portals
• Open JSON API for integration and custom workflows

Central configuration and provisioning

TVIP v.610 supports remote provisioning via TR-069 or TVIP XML, making it well suited for installations with multiple devices. Central provisioning enables faster deployment, consistent configuration and simplified maintenance across all TVIP units.

• Uniform configuration across multiple TVIP v610 devices
• Efficient roll-out in hotel and multi-room projects
• Reduced support and maintenance time

Ultra-compact design for discreet installations

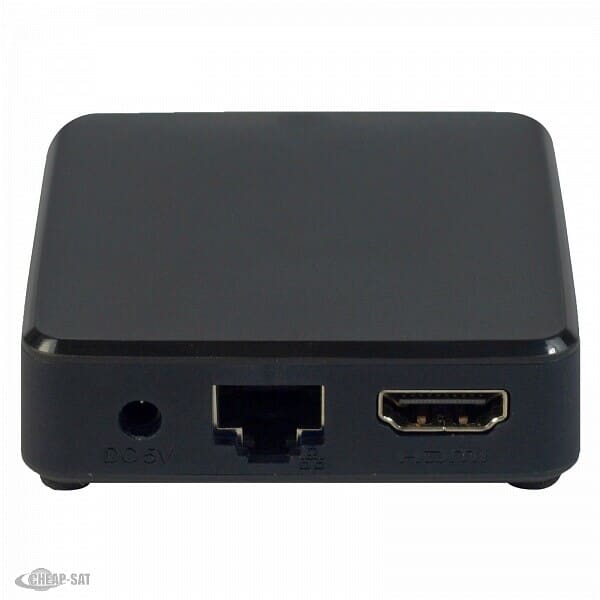

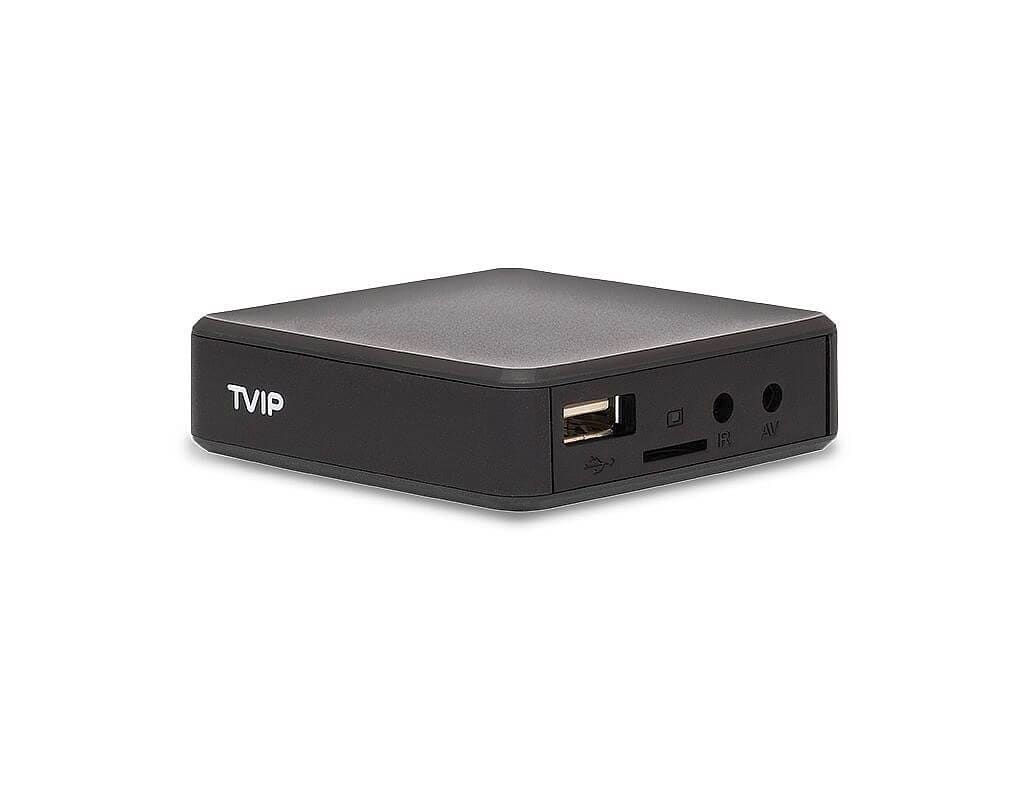

With dimensions of just 65 x 65 x 20 mm, TVIP v.610 S-Box is an ultra-compact IPTV set-top box that can be hidden behind the TV or integrated into furniture. Despite its small size, the TVIP v610 offers full connectivity via HDMI, Ethernet, USB, microSD and external IR.

4K UHD, HDR and modern codecs

TVIP v.610 delivers 4K UHD resolution (3840 x 2160) with HDR support and modern video codecs such as H.265 / HEVC (10-bit), VP9 and H.264. This ensures high image quality while maintaining efficient bandwidth usage in IPTV and OTT environments.

• Processor: Amlogic S905X quad core, 1.5 GHz
• Memory: 1 GB RAM and 8 GB flash
• 4K UHD playback up to 60 fps

Protocols and media formats

TVIP v.610 is designed for network-based media delivery and supports a wide range of protocols and formats commonly used in IPTV and OTT systems.

• Protocols: UDP, RTP, HTTP, HLS, RTSP, SMB, NFS, DLNA
• Containers: MPEG-TS, MPEG-PS, MP4, MKV, AVI, MOV, FLV, OGG
• Subtitles: DVBSUB, VOBSUB, Teletext, SSA / ASS, SubRip

Network options and WiFi via USB

TVIP v.610 S-Box does not include built-in WiFi and is therefore ideal for stable Ethernet-based installations. If a wired connection is not practical, WiFi can be added via USB using the official TVIP USB WiFi Adapter Rev.2. This dual band USB 2.0 WiFi adapter (2.4 and 5 GHz) supports speeds of up to 600 Mbit and is designed for TVIP S-Box models, subject to compatible firmware.

Model differentiation within the TVIP 61x series

TVIP v.610 S-Box is the Ethernet-only model in the TVIP 61x series. If integrated WiFi is required, TVIP v.612 offers 2.4 GHz WiFi, while TVIP v.615 supports dual band WiFi (2.4 / 5 GHz). Choosing TVIP v.610 provides a simple and robust solution for projects where wired networking is preferred.

Package contents

• TVIP S-Box v.610

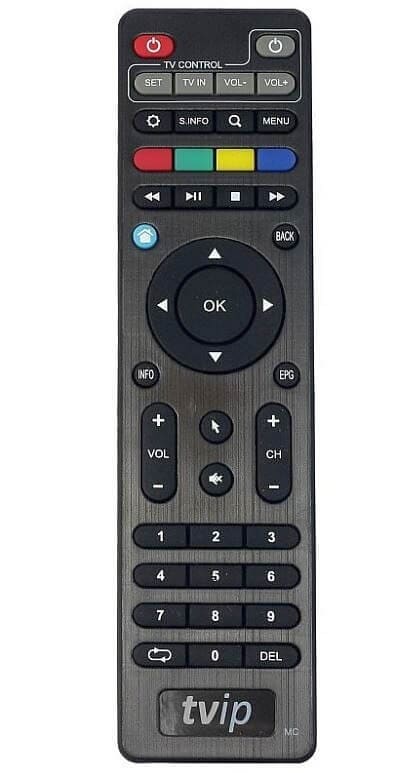

• IR remote control
• HDMI cable
• External IR sensor
• USB power supply 5V / 2A
• AV cable (3 x RCA)
• Quick start guide (English)

TVIP v.610 S-Box is an excellent choice for professional IPTV and OTT installations where compact size, portal compatibility and central management are essential.
