MAG 424 IPTV-modtager SET TOP BOX 4K UHD HEVC H.265 multimedieafspiller

98668
kr.899.00
Tax included
899
Normally 1-2 days

MAG424 is a powerful and inexpensive solution for a quick start of IPTV / OTT projects. The MAG 424 set-top box is equipped with an ARM Cortex-A53 processor with the Hi3798MV200 chipset and with a built-in HEVC codec so that 4K quality videos at 60 FPS can be viewed without problems and without overloading the network. The MAG424 delivers pure surround sound with built-in support for Dolby Digital 6-channel audio. 4K and HEVC support, 1 GB RAM, 8 GB NAND, 2 x USB (3.0, 2.0), Linux operating system, HDMI 2.0, Bluetooth, and microSD memory card slots.

Quantity
Last items in stock

  • Ecommerce Europe Trustmark certified Ecommerce Europe Trustmark certified
  • Fast shipping to all EU countries Fast shipping to all EU countries
  • Easy RMA and returns Easy RMA and returns
  • Secure payment - protected by strong SSL encryption Secure payment - protected by strong SSL encryption

MAG424 is a powerful and inexpensive solution for a quick start of IPTV / OTT projects. The MAG 424 set-top box is equipped with an ARM Cortex-A53 processor with the Hi3798MV200 chipset and with a built-in HEVC codec so that 4K quality videos at 60 FPS can be viewed without problems and without overloading the network. The MAG424 delivers pure surround sound with built-in support for Dolby Digital 6-channel audio.

4K and HEVC support, 1 GB RAM, 8 GB NAND, 2 x USB (3.0, 2.0), Linux operating system, HDMI 2.0, Bluetooth, and microSD memory card slots.

High efficiency: The modern, powerful processor based on the HiSilicon chipset Hi3798MV200 and 1 GB RAM is sufficient for playing 4K videos. Supports 4K and HEVC. With HEVC, 4K video can be transmitted efficiently over modern networks.

Easy to connect: USB 3.0 allows you to connect an external drive to additional storage space or a keyboard and mouse for easy box operation.

Ergonomic design: The set-top box and remote control are presented in the new microfusion design. This fits well with any type of interior.

Connections:

microSD memory card slot

Digital HDMI 2.0a output

Ethernet 100 Mb / s network connection

12 / 230V power connection

USB 2.0 port

USB 3.0 port

Hardware:

Chipset: Hi3798MV200

Processor: ARM Cortex-A53 Quad Core CPU 1200 MHz

Performance: 15,000 DMIPS

RAM: 1 GB

Flash memory: 8 GB NAND

Software:

Operating system: Linux 4.4.35

Supported middleware: Ministra TV platform version 5.4.0 or later



Media sources:

PC and NAS in a local network, Stream Media Protocols (RTSP, RTP, UDP, HTTP), via USB and microSD

Playlist format: M3U, M3U8, PLC, CUE

Subtitles: DVB, PGS, Hardsub, Inserted, SRT, SSA / ASS, SUB, Teletext Subs, WebVtt, Closed Caption

Audio and video:

Audio encoding: MPEG-1 I / II, MPEG-2 II, III (mp3), Dolby Digital Plus AAC-LC, HE-AAC v1, HE-AAC v2

Audio format: MP3, MPA, M4A, OGG, WAV, AAC

Video mode: PAL, NTSC, 576p, 720p, 1080p, 1080i, 2160p

Video encoding: H.265 (HEVC), H.264 (AVC, MVC), MPEG-1/2, MPEG-4

Video containers: TS, MTS, AVI, MPEG, MP4, MOV, MKV, M2TS, VOB, 3GP

Image format: JPEG, PNG, BMP, GIF, RAW

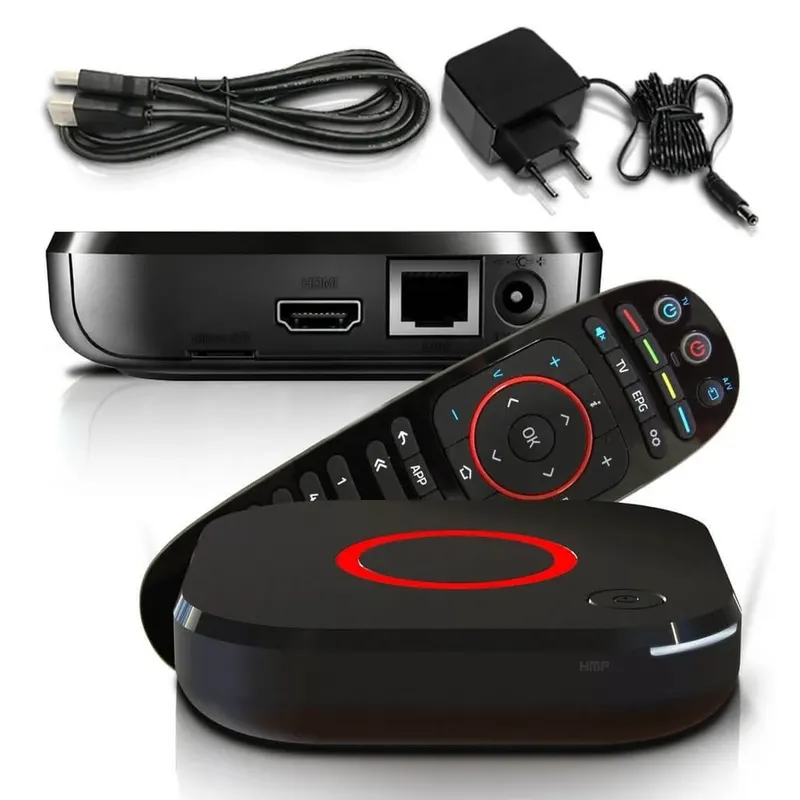

Scope of delivery:

Original Infomir MAG 424

power adapter

remote control

HDMI cable
