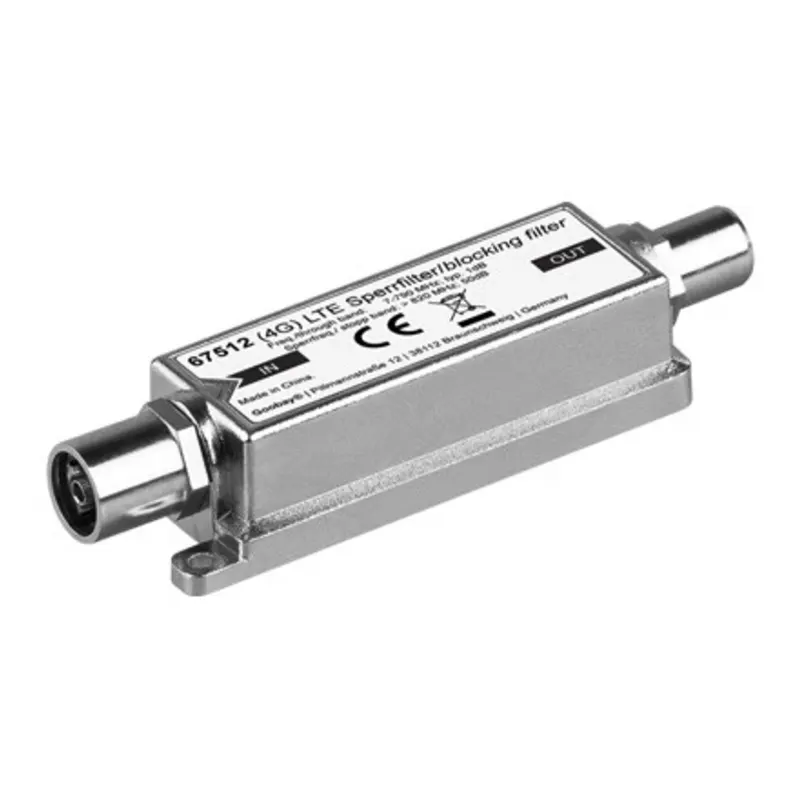

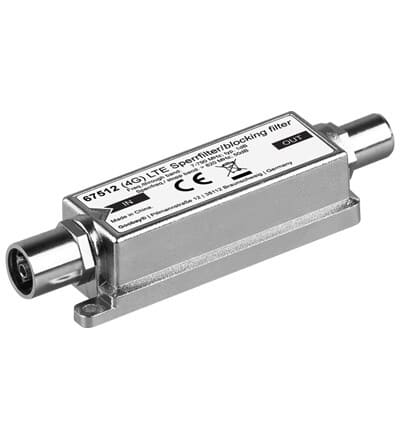

LTE blocking filter, Blocking filter for DVB-T, coax-jack/coax-plug

LTE / 4G blocking filter, Blocking filter for DVB-T, coax-jack/coax-plug

LTE wireless frequencies are frequencies for mobile Internet, the 4.- generation (4G).
The necessary frequencies are partially superimposed current DVB-T frequencies and therefore
causes problems. In some test sites already running trials,a DVB-T reception is therefore limited.

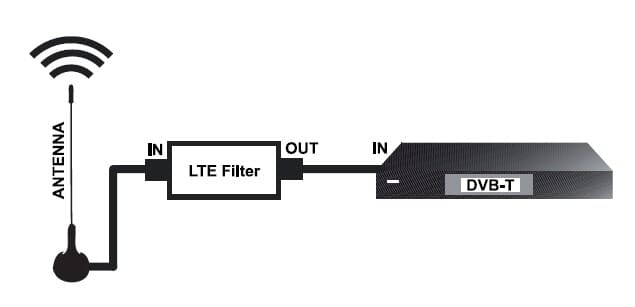

With the blocking filter DVB-T reception is again possible..

Specifications for 4G / LTE filter :
Frequency range: 5 - 790 MHz
Lock range: 790 - 2050MHz
Continuity range: 5 - 790MHz
Spear Depth:-50dB
Extra small insertion loss: <1dB

features for 4G / LTE filter :
DC Pass
RF tight cast housing

For indoor use.
