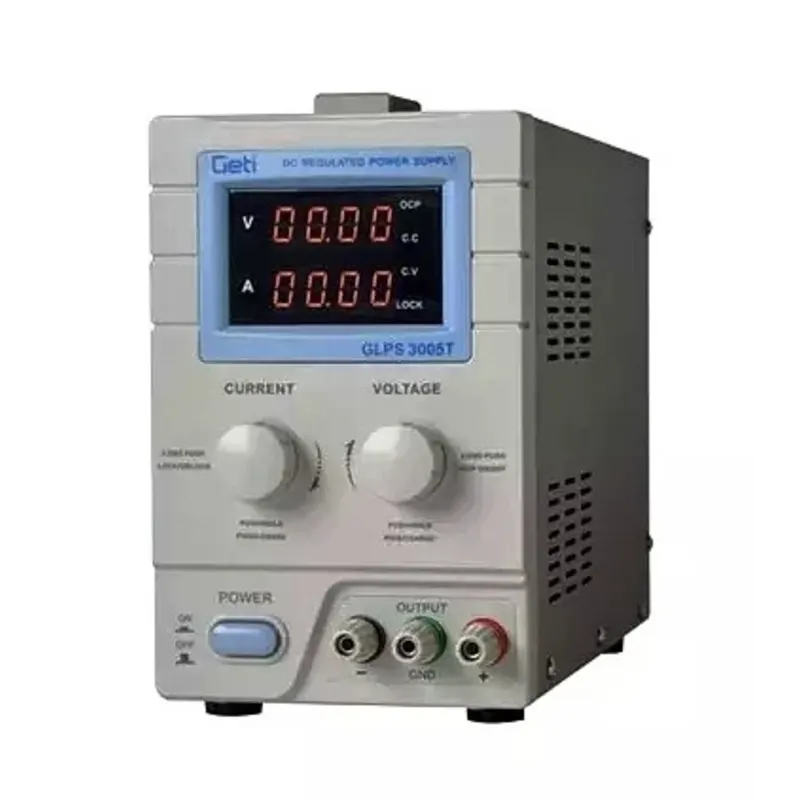

DC power supply with display, variable laboratory power supply 0-30 V 0-5 A.
  • DC power supply with display, variable laboratory power supply 0-30 V 0-5 A.

DC power supply with display, variable laboratory power supply 0-30 V 0-5 A.

01517
kr.949.00
Tax included
949
Normally 1-2 days

DC laboratory power supply 0-30V / 0-5 A. Variable DC power supply that continuously regulates the output voltage and the output current to the desired level. The DC laboratory power supply maintains the set values ​​regardless of fluctuations in supply voltage or the connected load. The DC power supply has built-in short-circuit protection, fuse, and locking protection of the set level. The power supply is suitable for work in laboratories and workshops, but also as teaching support in schools.

Quantity
Last items in stock

1 customer is currently viewing this article.
  • Ecommerce Europe Trustmark certified Ecommerce Europe Trustmark certified
  • Fast shipping to all EU countries Fast shipping to all EU countries
  • Easy RMA and returns Easy RMA and returns
  • Secure payment - protected by strong SSL encryption Secure payment - protected by strong SSL encryption

DC laboratory power supply 0-30V / 0-5 A. Variable DC power supply that continuously regulates the output voltage and the output current to the desired level. The DC laboratory power supply maintains the set values ​​regardless of fluctuations in supply voltage or the connected load. The DC power supply has built-in short-circuit protection, fuse and locking protection of the set level. The power supply is suitable for work in laboratories and workshops, but also as teaching support in schools.

Features:

  • 10mV / 1mA accuracy and resolution
  • Low ripple and noise
  • Overload protection
  • Fuse
  • Option to lock controls for unwanted reset
  • Rough and fine-tuning of current and voltage
  • 4-digit LED display for voltage and current display
  • Front panel with organic glass

Technical parameters:



  • Output voltage 0-30V adjustable
  • Output current 0-5A adjustable
  • Display 10mV, 1mA
  • Voltage ripple 1mV, current ripple 3mA
  • Transformer
  • Power supply: 230V AC, 50Hz
  • Dimensions: 116 x 180 x 262 mm
01517

Data sheet

Colour
Grey
Output (volt)
Output Current
Input voltage
