11x30 Rocker Switch 12V 20A ON/OFF 3-Terminal Green Indicator

01488
kr.31.00
Tax included
31
Normally 1-2 days

11x30 panel-mount rocker switch for 12V DC with ON/OFF function and a green indicator that only lights when the switch is turned on. Wired via 3 terminals with fixed functions: ground, positive and output. Rated for high load up to 20A and ideal for 12V control panels where you want a clear visual confirmation in the ON position.

Quantity
Last items in stock

Customer Icon 4 customers are currently viewing this article.
  • Ecommerce Europe Trustmark certified Ecommerce Europe Trustmark certified
  • Fast shipping to all EU countries Fast shipping to all EU countries
  • Easy RMA and returns Easy RMA and returns
  • Secure payment - protected by strong SSL encryption Secure payment - protected by strong SSL encryption

11x30 rocker switch 12V with green ON indicator

This compact 11x30 rocker switch is designed for 12V DC installations where you want a clear ON indication directly in the switch. The green indicator is active only in the ON position, giving a clean status signal without unnecessary lighting when switched off. With a 20A rating, it is suitable for many higher-current 12V applications.

Typical applications

Use it for 12V equipment such as work lights and LED lighting, small pumps, fans, vehicle accessories and general 12V circuits in workshops, camping setups and boats. At higher current, always use the correct fuse and properly sized wiring.

Wiring with 3 terminals

  • Ground: negative to the system
  • Positive: 12V input
  • Output: 12V output in ON

The indicator light is wired so it only illuminates in the ON position and clearly shows an active circuit.

Technical data

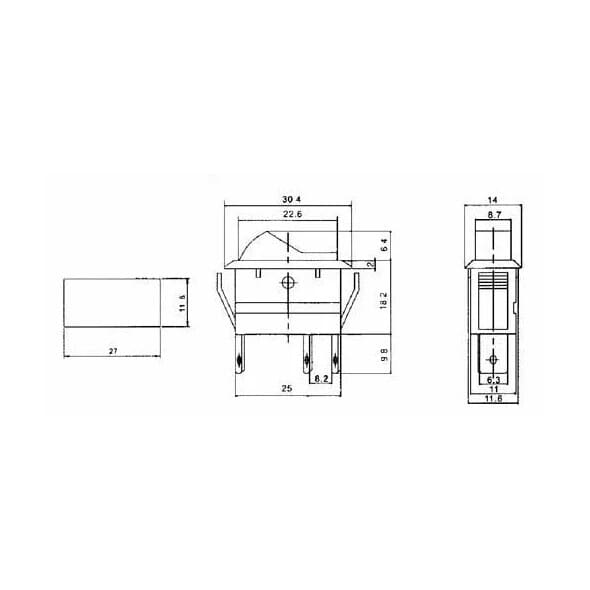

  • Panel cut-out: 11 x 30 mm
  • Voltage: 12V DC
  • Max current: 20A
  • Function: ON/OFF
  • Positions: 2
  • Connection: 3 terminals (ground, positive, output)
  • Light: green, on only in ON position
  • Color: transparent green

Package contents

  • 1 pc. 11x30 12V 20A rocker switch with green ON indicator

Want a clear ON status in your panel? Order today and get a robust 11x30 12V rocker switch with green indicator.

N.A.
01488

Data sheet

Colour
Green
Voltage
12 Volt
Manufacturer / responsible party in the EU
TIPA, spol. s r.o. Sadová 2749/42 74601 Opava Phone: +420 607 061 900 E-mail: info@tipa.eu
Max. current
