Maximum TA 1000 GSM/3G/4G/WLAN antenne
98505
kr.298.00
Tax included
298
Incl. VAT - Shipping within 1-2 days

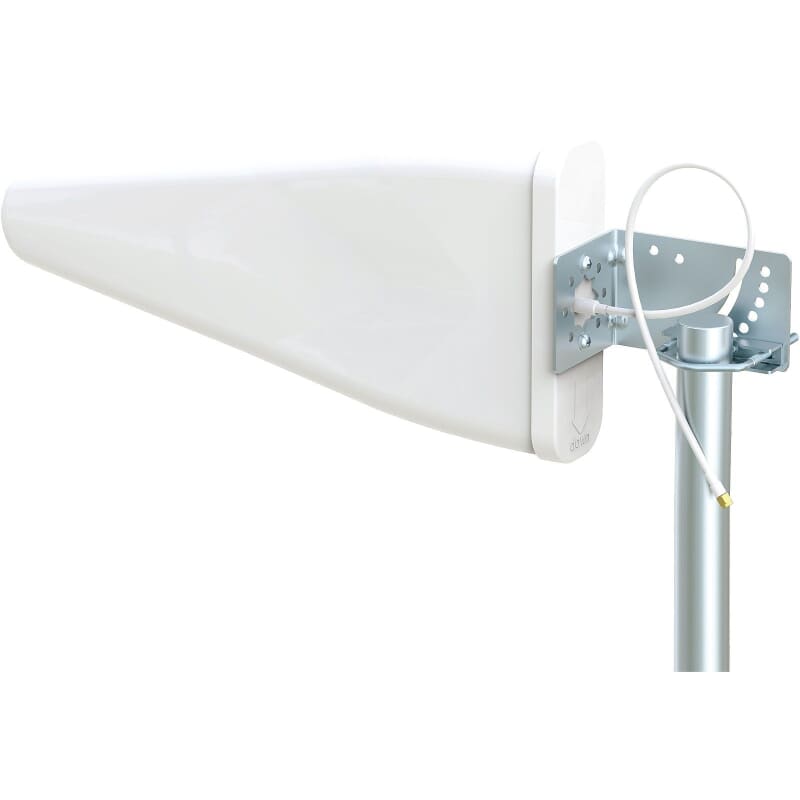

Log periodic antenna in compact design for enhancing 3G and 4G mobile signals as well as WLAN / WiFi. Can be used for the following signals: GSM / CDMA / PCS / 3G / 4G / WLAN / WiFi in the range of 698-960 MHz and 1710-2700 MHz. Antenna is supplied with bracket for mast assembly and 7.5 meter cable with SMA connector.
Ecommerce Europe Trustmark certified
Fast shipping to all EU countries
Easy RMA and returns
Secure payment - protected by strong SSL encryption
Located within EU
Log periodic aerial in compact design for enhancing 3G and 4G mobile signals as well as WLAN / WiFi. The aerial can be used for the following antenna signals: GSM / CDMA / PCS / 3G / 4G / WLAN / WiFi in the range of 698-960 MHz and 1710-2700 MHz. Antenna / Aerial is supplied with bracket for mast assembly and 7.5 meter cable with SMA connector.
98505
Data sheet
- Colour
- White
- Length
- 445 mm.
- Height
- 57,00
- width / Depth
- 70 mm.
- Properties
- Leveres med 7.5 m. antennekabel og mastebeslag.
- Gain dB
- 11 dBi +- 1 dB
- Frequency range
- 1: 698-960 M*Hz / 2:1710-2700 MHz
- Connector type
- SMA male
- Mounting
- Mast Ø30 - Ø53 mm.
- Impedance
- 50 Ohm
- Warranty
- 2 Years
- Antenna, Polarity
- Vertikal
- Antenna ,Front / Back ratio
- ≥21
- Beam Width
- Hor: 60±8 / 55±8 Ver.: 50±8 / 45±8
- Output
- 1
- VSWR
- ≤ 1.7
- Max. Power
- 100 W.
- Tarif
- 8529103900
- Origin
- CN
