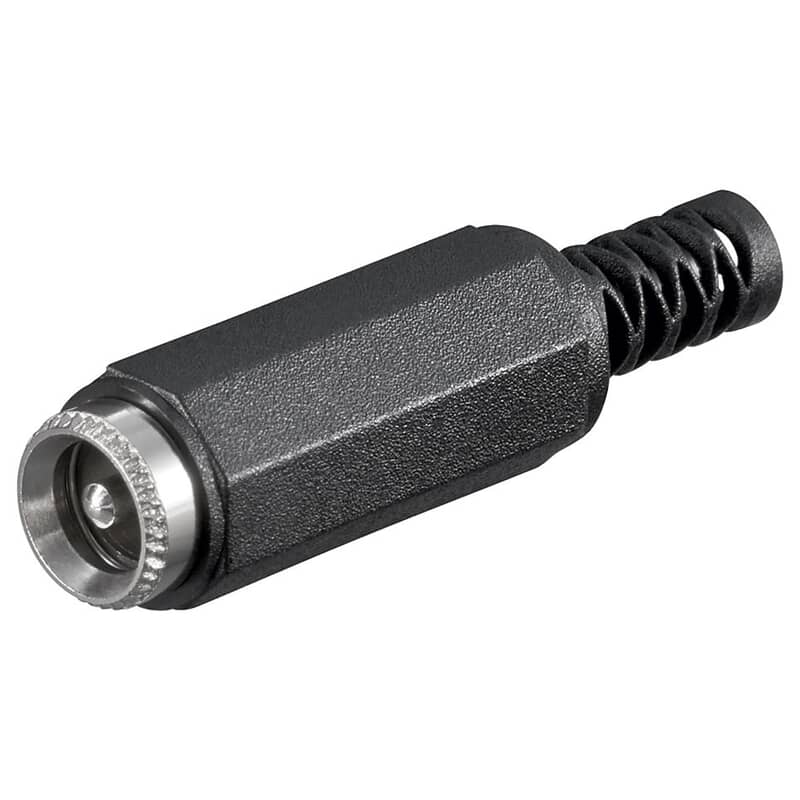

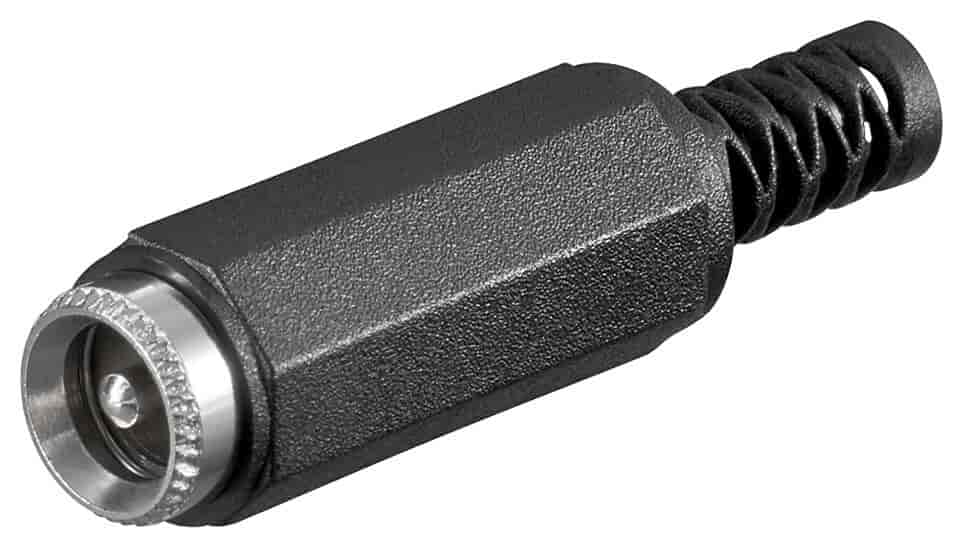

DC jack - female DC connector Ø2.1 mm. / Ø 5.9 mm.

DC Female Connector 2.1 mm ? for DIY Projects, Model Building and Electronics Testing

This 2.1 mm DC female connector is ideal for hobby use, test setups, and small electronics projects such as model building, alarm systems, and AV technology. The connector is supplied without a cable and must be soldered manually, making it well-suited for DIY applications and custom configurations.

The connector is 2-pole and features strain relief to reduce the risk of cable breakage during frequent use or movement. The electrical contact part is made of nickel-plated zinc alloy, while the housing is constructed from durable PE plastic and the insulation from ABS.

Specifications:

• Connector type: DC female connector (2.1 mm)
• Suitable for: hobby electronics, model building, alarm systems, test setups, and AV equipment
• Supplied: Without cable ? requires soldering during installation
• Polarity: 2-pole
• Strain relief: Yes
• Electrical contact part: Nickel-plated zinc alloy
• Housing material: PE
• Insulation: ABS
• Rated voltage: 6 V
• Rated current: 2 A

This DC connector is not suitable for professional or industrial use, but is perfect for electronics enthusiasts and DIY projects.
